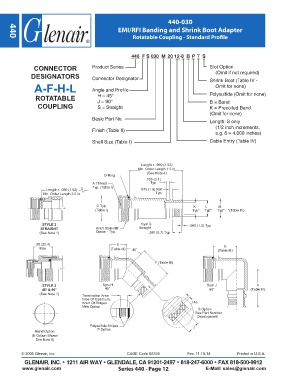

Page 398 - Circular Connector Backshells and Accessories

440-030

EMI/RFI Banding and Shrink Boot Adapter
Rotatable Coupling - Standard Profile
440

440 F S 030 M 20 12-8 B P T S

CONNECTOR Product Series Slot Option
(Omit if not required)
DESIGNATORS Connector Designator Shrink Boot (Table IV -
A-F-H-L Angle and Profile Omit for none)

ROTATABLE H = 45° Polysulfide (Omit for none)
J = 90°
B = Band
COUPLING S = Straight K = Precoiled Band
(Omit for none)
Basic Part No.
Length: S only
(1/2 inch increments,
Finish (Table II)
e.g. 8 = 4.000 inches)
Shell Size (Table I) Cable Entry (Table IV)

Length ± .060 (1.52)
Min. Order Length 1.5 in.
(See Note 4)
O-Ring
.135 (3.4)
A Thread Typ
Typ. (Table I)
Length ± .060 (1.52) .075 (1.9) Ref
Min. Order Length 2.0 in. Typ

C Typ. K L M
(Table I) Typ* Typ* Typ* *(Table IV)

STYLE 2 Sym S .060 (1.5) Typ
STRAIGHT Knurl Style Mfr Straight
(See Note 1) Option - Typ .380 (9.7) Typ

.88 (22.4) E
G
Max (Table III) 45° (Table III)

F (Table III)

STYLE 2 Sym H Sym J H
45° & 90° 45° 90° (Table III)
(See Note 1) Termination Area
Free Of Cadmium.
Knurl Or Ridges .146
Mfrs Option
S Option
See Part Number
Development
Polysulfide Stripes J
Band Option P Option
(K Option Shown
See Note 6)
