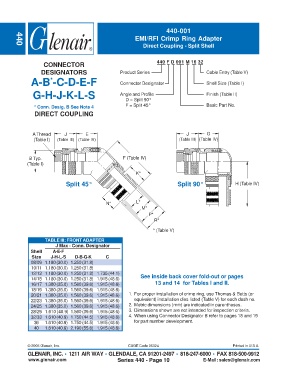

440-001
EMI/RFI Crimp Ring Adapter
Direct Coupling - Split Shell
440

CONNECTOR 440 F D 001 M 16 32
DESIGNATORS Product Series Cable Entry (Table V)
A-B -C-D-E-F Connector Designator Shell Size (Table I)
*
G-H-J-K-L-S Angle and Profile Finish (Table II)
D = Split 90°
* Conn. Desig. B See Note 4 F = Split 45° Basic Part No.
DIRECT COUPLING

A Thread J E J G
(Table I) (Table III) (Table IV) (Table III) (Table IV)

B Typ. F (Table IV)
(Table I)
K*

Split 45° Split 90° H (Table IV)

N* L*
M*
P*
R*
* (Table V)

TABLE III: FRONT ADAPTER
J Max - Conn. Designator
Shell A-E-F
Size J-H-L-S D-B-G-K C
08/09 1.180 (30.0) 1.250 (31.8)
10/11 1.180 (30.0) 1.250 (31.8)
12/13 1.180 (30.0) 1.250 (31.8) 1.735 (44.1)
14/15 1.180 (30.0) 1.250 (31.8) 1.915 (48.6) See inside back cover fold-out or pages
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 13 and 14 for Tables I and II.
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 1. For proper installation of crimp ring, use Thomas & Betts (or
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) equivalent) installation dies listed (Table V) for each dash no.
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 2. Metric dimensions (mm) are indicated in parentheses.
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 3. Dimensions shown are not intended for inspection criteria.
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 4. When using Connector Designator B refer to pages 18 and 19
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) for part number development.
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6)
