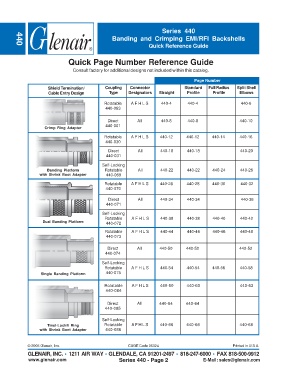

Page 388 - Circular Connector Backshells and Accessories

Series 440
Banding and Crimping EMI/RFI Backshells
Quick Reference Guide
440

Quick Page Number Reference Guide

Consult factory for additional designs not included within this catalog.
Page Number
Shield Termination/ Coupling Connector Standard Full Radius Split Shell
Cable Entry Design Type Designators Straight Profile Profile Elbows
Rotatable A F H L S 440-4 440-4 440-6
440-063

Direct All 440-8 440-8 440-10
440-001
Crimp Ring Adapter
Rotatable A F H L S 440-12 440-12 440-14 440-16
440-030

Direct All 440-18 440-18 440-20
440-031
Self-Locking
Banding Platform Rotatable All 440-22 440-22 440-24 440-26
with Shrink Boot Adapter 440-069
Rotatable A F H L S 440-28 440-28 440-30 440-32
440-070

Direct All 440-34 440-34 440-36
440-071
Self-Locking
Rotatable A F H L S 440-38 440-38 440-40 440-42
Dual Banding Platform 440-072

Rotatable A F H L S 440-44 440-44 440-46 440-48
440-073

Direct All 440-50 440-50 440-52
440-074

Self-Locking
Rotatable A F H L S 440-54 440-54 440-56 440-58
Single Banding Platform 440-075

Rotatable A F H L S 440-60 440-60 440-62
440-084

Direct All 440-64 440-64
440-085

Self-Locking
Tinel-Lock® Ring Rotatable A F H L S 440-66 440-66 440-68
with Shrink Boot Adapter 440-086

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 440 - Page 2 E-Mail: sales@glenair.com
