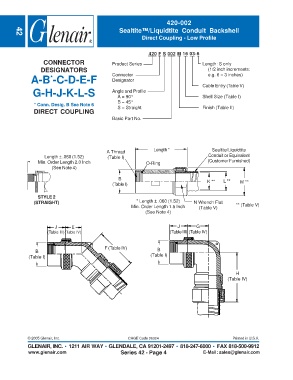

420-002
Sealtite™/Liquidtite Conduit Backshell
Direct Coupling - Low Profile
42

420 F S 002 M 16 03-6
CONNECTOR Product Series Length: S only
DESIGNATORS (1/2 inch increments:
A-B -C-D-E-F Connector e.g. 6 = 3 inches)
*
Designator
Cable Entry (Table V)
G-H-J-K-L-S Angle and Profile Shell Size (Table I)
A = 90°
B = 45°
* Conn. Desig. B See Note 6 S = Straight Finish (Table II)
DIRECT COUPLING
Basic Part No.

A Thread Length * Sealtite/Liquidtite
Length ± .060 (1.52) (Table I) Conduit or Equivalent
Min. Order Length 2.0 Inch O-Ring (Customer Furnished)
(See Note 4)

B L **
(Table I) K ** M **

STYLE 2
(STRAIGHT) * Length ± .060 (1.52) N Wrench Flat
Min. Order Length 1.5 Inch (Table V) ** (Table V)
(See Note 4)

J E J G
(Table III) (Table IV) (Table III) (Table IV)

F (Table IV) B
B
(Table I) (Table I)

H
(Table IV)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
