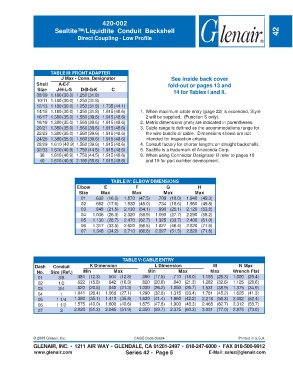

Page 385 - Circular Connector Backshells and Accessories

420-002
Sealtite™/Liquidtite Conduit Backshell 42
Direct Coupling - Low Profile

TABLE III: FRONT ADAPTER
J Max - Conn. Designator See inside back cover
Shell A-E-F fold-out or pages 13 and
Size J-H-L-S D-B-G-K C
08/09 1.180 (30.0) 1.250 (31.8) 14 for Tables I and II.
10/11 1.180 (30.0) 1.250 (31.8)
12/13 1.180 (30.0) 1.250 (31.8) 1.735 (44.1)
14/15 1.180 (30.0) 1.250 (31.8) 1.915 (48.6) 1. When maximum cable entry (page 22) is exceeded, Style
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 2 will be supplied. (Function S only).
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 2. Metric dimensions (mm) are indicated in parentheses.
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 3. Cable range is defined as the accommodations range for
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) the wire bundle or cable. Dimensions shown are not
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) intended for inspection criteria.
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 4. Consult factory for shorter lengths on straight backshells.
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 5. Sealtite is a trademark of Anaconda Corp.
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 6. When using Connector Designator B refer to pages 18
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6) and 19 for part number development.

TABLE IV: ELBOW DIMENSIONS
Elbow E F G H
Size Max Max Max Max
01 .630 (16.0) 1.870 (47.5) .709 (18.0) 1.940 (49.3)
02 .692 (17.6) 1.930 (49.0) .734 (18.6) 1.960 (49.8)
03 .848 (21.5) 2.130 (54.1) .990 (25.1) 2.120 (53.8)
04 1.036 (26.3) 2.320 (58.9) 1.090 (27.7) 2.290 (58.2)
05 1.130 (28.7) 2.470 (62.7) 1.325 (33.7) 2.400 (61.0)
06 1.317 (33.5) 2.620 (66.5) 1.827 (46.4) 2.820 (71.6)
07 1.348 (34.2) 2.710 (68.8) 2.027 (51.5) 2.820 (71.6)

TABLE V: CABLE ENTRY
Dash Conduit K Dimension L Dimension M N Max
No. Size (Ref.) Min Max Min Max Max Wrench Flat
01 3/8 .484 (12.3) .504 (12.8) .690 (17.5) .710 (18.0) 1.155 (29.3) 1.000 (25.4)
02 1/2 .622 (15.8) .642 (16.3) .820 (20.8) .840 (21.3) 1.282 (32.6) 1.125 (28.6)
03 3/4 .820 (20.8) .840 (21.3) 1.030 (26.2) 1.050 (26.7) 1.531 (38.9) 1.375 (34.9)
04 1 1.041 (26.4) 1.066 (27.1) 1.290 (32.8) 1.315 (33.4) 1.781 (45.2) 1.625 (41.3)
05 1 1/4 1.380 (35.1) 1.410 (35.8) 1.630 (41.4) 1.660 (42.2) 2.218 (56.3) 2.062 (52.4)
06 1 1/2 1.575 (40.0) 1.600 (40.6) 1.875 (47.6) 1.900 (48.3) 2.468 (62.7) 2.312 (58.7)
07 2 2.020 (51.3) 2.045 (51.9) 2.350 (59.7) 2.375 (60.3) 3.031 (77.0) 2.875 (73.0)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 42 - Page 5 E-Mail: sales@glenair.com
