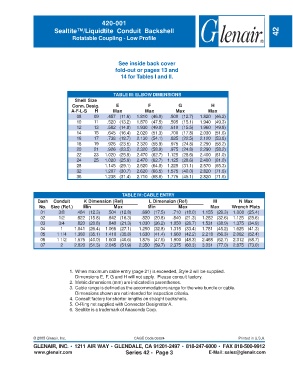

Page 383 - Circular Connector Backshells and Accessories

420-001
Sealtite™/Liquidtite Conduit Backshell 42
Rotatable Coupling - Low Profile

See inside back cover
fold-out or pages 13 and
14 for Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. E F G H
A-F-L-S H Max Max Max Max
08 09 .457 (11.6) 1.810 (46.0) .500 (12.7) 1.820 (46.2)
10 11 .520 (13.2) 1.870 (47.5) .595 (15.1) 1.940 (49.3)
12 13 .582 (14.8) 1.930 (49.0) .610 (15.5) 1.960 (49.8)
14 15 .645 (16.4) 2.020 (51.3) .700 (17.8) 2.030 (51.6)
16 17 .738 (18.7) 2.130 (54.1) .885 (22.5) 2.120 (53.8)
18 19 .926 (23.5) 2.320 (58.9) .975 (24.8) 2.290 (58.2)
20 21 .926 (23.5) 2.320 (58.9) .975 (24.8) 2.290 (58.2)
22 23 1.020 (25.9) 2.470 (62.7) 1.125 (28.6) 2.400 (61.0)
24 25 1.020 (25.9) 2.470 (62.7) 1.125 (28.6) 2.400 (61.0)
28 1.145 (29.1) 2.520 (64.0) 1.225 (31.1) 2.570 (65.3)
32 1.207 (30.7) 2.620 (66.5) 1.575 (40.0) 2.820 (71.6)
36 1.238 (31.4) 2.710 (68.8) 1.775 (45.1) 2.820 (71.6)

TABLE IV: CABLE ENTRY
Dash Conduit K Dimension (Ref) L Dimension (Ref) M N Max
No. Size (Ref.) Min Max Min Max Max Wrench Flats
01 3/8 .484 (12.3) .504 (12.8) .690 (17.5) .710 (18.0) 1.155 (29.3) 1.000 (25.4)
02 1/2 .622 (15.8) .642 (16.3) .820 (20.8) .840 (21.3) 1.282 (32.6) 1.125 (28.6)
03 3/4 .820 (20.8) .840 (21.3) 1.030 (26.2) 1.050 (26.7) 1.531 (38.9) 1.375 (34.9)
04 1 1.041 (26.4) 1.066 (27.1) 1.290 (32.8) 1.315 (33.4) 1.781 (45.2) 1.625 (41.3)
05 1 1/4 1.380 (35.1) 1.410 (35.8) 1.630 (41.4) 1.660 (42.2) 2.218 (56.3) 2.062 (52.4)
06 1 1/2 1.575 (40.0) 1.600 (40.6) 1.875 (47.6) 1.900 (48.3) 2.468 (62.7) 2.312 (58.7)
07 2 2.020 (51.3) 2.045 (51.9) 2.350 (59.7) 2.375 (60.3) 3.031 (77.0) 2.875 (73.0)

1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
4. Consult factory for shorter lengths on straight backshells.
5. O-Ring not supplied with Connector Designator A.
6. Sealtite is a trademark of Anaconda Corp.
