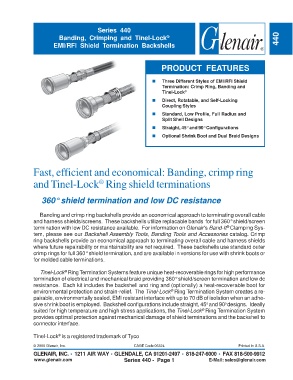

Page 387 - Circular Connector Backshells and Accessories

Series 440
Banding, Crimping and Tinel-Lock ® 440
EMI/RFI Shield Termination Backshells

PRODUCT FEATURES

„ „ „ „ „ Three Different Styles of EMI/RFI Shield
Termination: Crimp Ring, Banding and
Tinel-Lock ®

„ „ „ „ „ Direct, Rotatable, and Self-Locking
Coupling Styles
„ „ „ „ „ Standard, Low Profile, Full Radius and
Split Shell Designs

„ „ „ „ „ Straight, 45° and 90° Configurations
„ „ „ „ „ Optional Shrink Boot and Dual Braid Designs

Fast, efficient and economical: Banding, crimp ring

and Tinel-Lock Ring shield terminations
®

360° shield termination and low DC resistance

Banding and crimp ring backshells provide an economical approach to terminating overall cable
and harness shields/screens. These backshells utilize replacable bands for full 360° shield/screen
termination with low DC resistance available. For information on Glenair's Band-It Clamping Sys-
®
tem, please see our Backshell Assembly Tools, Banding Tools and Accessories catalog. Crimp
ring backshells provide an economical approach to terminating overall cable and harness shields
where future repairability or maintainability are not required. These backshells use standard outer
crimp rings for full 360° shield termination, and are available in versions for use with shrink boots or
for molded cable terminations.

Tinel-Lock Ring Termination Systems feature unique heat-recoverable rings for high performance
®
termination of electrical and mechanical braid providing 360° shield/screen termination and low dc
resistance. Each kit includes the backshell and ring and (optionally) a heat-recoverable boot for
environmental protection and strain-relief. The Tinel-Lock Ring Termination System creates a re-
®
pairable, environmentally sealed, EMI resistant interface with up to 70 dB of isolation when an adhe-
o
o
sive shrink boot is employed. Backshell configurations include straight, 45 and 90 designs. Ideally
®
suited for high temperature and high stress applications, the Tinel-Lock Ring Termination System
provides optimal protection against mechanical damage of shield terminations and the backshell to
connector interface.

Tinel-Lock is a registered trademark of Tyco
®
