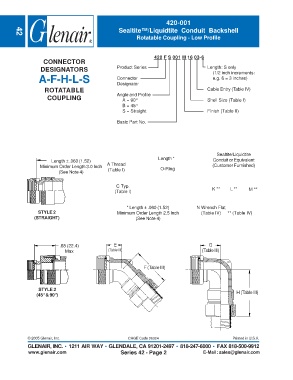

420-001
Sealtite™/Liquidtite Conduit Backshell
Rotatable Coupling - Low Profile
42

420 F S 001 M 16 03-6
CONNECTOR
DESIGNATORS Product Series Length: S only
(1/2 inch increments:
A-F-H-L-S Connector e.g. 6 = 3 inches)
Designator
ROTATABLE Cable Entry (Table IV)
COUPLING Angle and Profile Shell Size (Table I)
A = 90°
B = 45°
S = Straight Finish (Table II)

Basic Part No.

Sealtite/Liquidtite
Length *
Length ± .060 (1.52) Conduit or Equivalent
Minimum Order Length 3.0 Inch A Thread O-Ring (Customer Furnished)
(See Note 4) (Table I)

C Typ.
(Table I) K ** L ** M **

* Length ± .060 (1.52) N Wrench Flat
STYLE 2 Minimum Order Length 2.5 Inch (Table IV) ** (Table IV)
(STRAIGHT) (See Note 4)

.88 (22.4) E G
Max (Table III) (Table III)

F (Table III)

STYLE 2
(45° & 90°) H (Table III)
