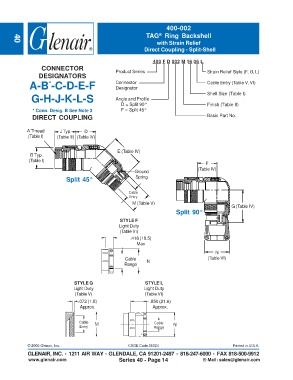

Page 362 - Circular Connector Backshells and Accessories

400-002
TAG Ring Backshell
®
with Strain Relief
40
Direct Coupling - Split-Shell

400 F D 002 M 16 06 L
CONNECTOR Product Series Strain Relief Style (F, G, L)
DESIGNATORS
A-B -C-D-E-F Connector Cable Entry (Table V, VI)
*
Designator
G-H-J-K-L-S Angle and Profile Shell Size (Table I)
D = Split 90° Finish (Table II)
* Conn. Desig. B See Note 3 F = Split 45°
DIRECT COUPLING Basic Part No.

A Thread J Typ. D
(Table I) (Table III) (Table IV)

E (Table IV)
B Typ.
(Table I)
F
(Table IV)
Ground
Split 45° Spring

Cable
Entry
M (Table V)
G (Table IV)
Split 90°

STYLE F
Light Duty
(Table VI)
.416 (10.5)
Max
N
Cable N (Table VI)
Range

STYLE G STYLE L
Light Duty Light Duty
(Table V) (Table VI)
.072 (1.8) .850 (21.6)
Approx. Approx.

Cable M Cable N
Entry Range

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 40 - Page 14 E-Mail: sales@glenair.com
