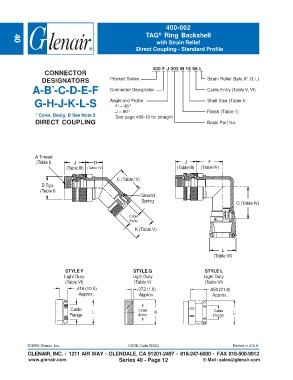

Page 360 - Circular Connector Backshells and Accessories

400-002
TAG Ring Backshell
®
with Strain Relief
40
Direct Coupling - Standard Profile

400 F J 002 M 16 06 L
CONNECTOR
DESIGNATORS Product Series Strain Relief Style (F, G, L)
A-B -C-D-E-F Connector Designator Cable Entry (Table V, VI)
*
G-H-J-K-L-S Angle and Profile Shell Size (Table I)
H = 45°
J = 90° Finish (Table II)
* Conn. Desig. B See Note 3 See page 400-10 for straight
DIRECT COUPLING Basic Part No.

A Thread
(Table I) J D J F
(Table III) (Table IV) (Table III) (Table IV)

E (Table IV)
B Typ.
(Table I)
Ground
Spring
G (Table IV)

Cable
Entry
K (Table V)

L
(Table VI)

STYLE F STYLE G STYLE L
Light Duty Light Duty Light Duty
(Table VI) (Table V) (Table VI)
.416 (10.5) .072 (1.8) .850 (21.6)
Approx. Approx. Approx.

Cable L Cable Cable
Range Entry K Range L

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 40 - Page 12 E-Mail: sales@glenair.com
