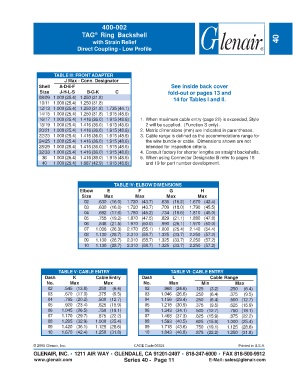

Page 359 - Circular Connector Backshells and Accessories

400-002
TAG Ring Backshell
®
with Strain Relief 40
Direct Coupling - Low Profile

TABLE III: FRONT ADAPTER
J Max - Conn. Designator
Shell A-D-E-F See inside back cover
Size J-H-L-S B-G-K C fold-out or pages 13 and
08/09 1.000 (25.4) 1.250 (31.8) 14 for Tables I and II.
10/11 1.000 (25.4) 1.250 (31.8)
12/13 1.000 (25.4) 1.250 (31.8) 1.735 (44.1)
14/15 1.000 (25.4) 1.250 (31.8) 1.915 (48.6)
16/17 1.000 (25.4) 1.416 (36.0) 1.915 (48.6) 1. When maximum cable entry (page 22) is exceeded, Style
18/19 1.000 (25.4) 1.416 (36.0) 1.915 (48.6) 2 will be supplied. (Function S only).
20/21 1.000 (25.4) 1.416 (36.0) 1.915 (48.6) 2. Metric dimensions (mm) are indicated in parentheses.
22/23 1.000 (25.4) 1.416 (36.0) 1.915 (48.6) 3. Cable range is defined as the accommodations range for
24/25 1.000 (25.4) 1.416 (36.0) 1.915 (48.6) the wire bundle or cable. Dimensions shown are not
28/29 1.000 (25.4) 1.416 (36.0) 1.915 (48.6) intended for inspection criteria.
32/33 1.000 (25.4) 1.416 (36.0) 1.915 (48.6) 4. Consult factory for shorter lengths on straight backshells.
36 1.000 (25.4) 1.416 (36.0) 1.915 (48.6) 5. When using Connector Designator B refer to pages 18
40 1.000 (25.4) 1.687 (42.9) 1.915 (48.6) and 19 for part number development.

TABLE IV: ELBOW DIMENSIONS
Elbow E F G H
Size Max Max Max Max
02 .630 (16.0) 1.720 (43.7) .636 (16.2) 1.670 (42.4)
03 .630 (16.0) 1.720 (43.7) .709 (18.0) 1.790 (45.5)
04 .692 (17.6) 1.780 (45.2) .734 (18.6) 1.810 (46.0)
05 .755 (19.2) 1.870 (47.5) .829 (21.1) 1.880 (47.8)
06 .848 (21.5) 1.970 (50.0) .990 (25.1) 1.970 (50.0)
07 1.036 (26.3) 2.170 (55.1) 1.000 (25.4) 2.140 (54.4)
08 1.130 (28.7) 2.310 (58.7) 1.325 (33.7) 2.250 (57.2)
09 1.130 (28.7) 2.310 (58.7) 1.325 (33.7) 2.250 (57.2)
10 1.130 (28.7) 2.310 (58.7) 1.325 (33.7) 2.250 (57.2)

TABLE V: CABLE ENTRY TABLE VI: CABLE ENTRY
Dash K Cable Entry Dash L Cable Range
No. Max Max No. Max Min Max
02 .545 (13.8) .250 (6.4) 02 .968 (24.6) .125 (3.2) .250 (6.4)
03 .670 (17.0) .375 (9.5) 03 1.046 (26.6) .250 (6.4) .375 (9.5)
04 .795 (20.2) .500 (12.7) 04 1.156 (29.4) .250 (6.4) .500 (12.7)
05 .920 (23.4) .625 (15.9) 05 1.218 (30.9) .375 (9.5) .625 (15.9)
06 1.045 (26.5) .750 (19.1) 06 1.343 (34.1) .500 (12.7) .750 (19.1)
07 1.170 (29.7) .875 (22.2) 07 1.468 (37.3) .625 (15.9) .875 (22.2)
08 1.295 (32.9) 1.000 (25.4) 08 1.593 (40.5) .625 (15.9) 1.000 (25.4)
09 1.420 (36.1) 1.125 (28.6) 09 1.718 (43.6) .750 (19.1) 1.125 (28.6)
10 1.670 (42.4) 1.250 (31.8) 10 1.843 (46.8) .875 (22.2) 1.250 (31.8)
