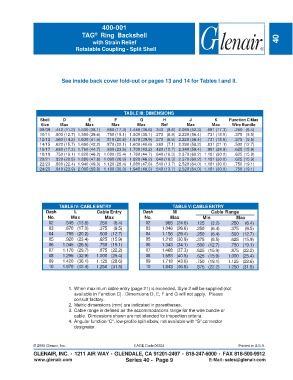

Page 357 - Circular Connector Backshells and Accessories

400-001
TAG Ring Backshell
®
with Strain Relief 40
Rotatable Coupling - Split Shell

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: DIMENSIONS
Shell D E F G H J K Function C Max
Size Max Max Max Max Ref Max Max Wire Bundle
08/09 .440 (11.2) 1.500 (38.1) .680 (17.3) 1.440 (36.6) .340 (8.6) 2.060 (52.3) .681 (17.3) .250 (6.4)
10/11 .500 (12.7) 1.560 (39.6) .750 (19.1) 1.500 (38.1) .270 (6.9) 2.220 (56.4) .731 (18.6) .375 (9.5)
12/13 .560 (14.2) 1.630 (41.4) .810 (20.6) 1.570 (39.9) .270 (6.9) 2.220 (56.4) .731 (18.6) .375 (9.5)
14/15 .620 (15.7) 1.660 (42.2) .870 (22.1) 1.600 (40.6) .280 (7.1) 2.290 (58.2) .831 (21.1) .500 (12.7)
16/17 .680 (17.3) 1.760 (44.7) .930 (23.6) 1.700 (43.2) .420 (10.7) 2.340 (59.4) .981 (24.9) .625 (15.9)
18/19 .750 (19.1) 1.820 (46.2) 1.000 (25.4) 1.760 (44.7) .640 (16.3) 2.370 (60.2) 1.181 (30.0) .625 (15.9)
20/21 .820 (20.8) 1.880 (47.8) 1.060 (26.9) 1.820 (46.2) .640 (16.3) 2.370 (60.2) 1.181 (30.0) .625 (15.9)
22/23 .880 (22.4) 1.940 (49.3) 1.120 (28.4) 1.880 (47.8) .540 (13.7) 2.520 (64.0) 1.181 (30.0) .750 (19.1)
24/25 .940 (23.9) 2.000 (50.8) 1.180 (30.0) 1.940 (49.3) .540 (13.7) 2.520 (64.0) 1.181 (30.0) .750 (19.1)

TABLE IV: CABLE ENTRY TABLE V: CABLE ENTRY
Dash L Cable Entry Dash M Cable Range
No. Max Max No. Max Min Max
02 .545 (13.8) .250 (6.4) 02 .968 (24.6) .125 (3.2) .250 (6.4)
03 .670 (17.0) .375 (9.5) 03 1.046 (26.6) .250 (6.4) .375 (9.5)
04 .795 (20.2) .500 (12.7) 04 1.156 (29.4) .250 (6.4) .500 (12.7)
05 .920 (23.4) .625 (15.9) 05 1.218 (30.9) .375 (9.5) .625 (15.9)
06 1.045 (26.5) .750 (19.1) 06 1.343 (34.1) .500 (12.7) .750 (19.1)
07 1.170 (29.7) .875 (22.2) 07 1.468 (37.3) .625 (15.9) .875 (22.2)
08 1.295 (32.9) 1.000 (25.4) 08 1.593 (40.5) .625 (15.9) 1.000 (25.4)
09 1.420 (36.1) 1.125 (28.6) 09 1.718 (43.6) .750 (19.1) 1.125 (28.6)
10 1.670 (42.4) 1.250 (31.8) 10 1.843 (46.8) .875 (22.2) 1.250 (31.8)

1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied (not
available in Function C). Dimensions D, E, F and G will not apply. Please
consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
4. Angular function "C", low-profile split elbow, not available with "S" connector
designator.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 40 - Page 9 E-Mail: sales@glenair.com
