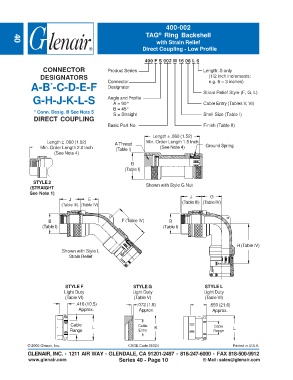

Page 358 - Circular Connector Backshells and Accessories

400-002
TAG Ring Backshell
®
with Strain Relief
40
Direct Coupling - Low Profile

400 F S 002 M 16 06 L 6
CONNECTOR Product Series Length: S only
DESIGNATORS Connector (1/2 inch increments:
e.g. 6 = 3 inches)
A-B -C-D-E-F Designator
*
Strain Relief Style (F, G, L)
G-H-J-K-L-S Angle and Profile Cable Entry (Tables V, VI)
A = 90°
B = 45°
* Conn. Desig. B See Note 5 S = Straight Shell Size (Table I)
DIRECT COUPLING
Basic Part No. Finish (Table II)

Length ± .060 (1.52)
Length ± .060 (1.52) A Thread Min. Order Length 1.5 Inch
Min. Order Length 2.0 Inch (Table I) (See Note 4) Ground Spring
(See Note 4)

B
(Table I)

STYLE 2 Shown with Style G Nut
(STRAIGHT
See Note 1)
J E J G
(Table III) (Table IV) (Table III) (Table IV)

B F (Table IV) B
(Table I) (Table I)

H (Table IV)
Shown with Style L
Strain Relief

STYLE F STYLE G STYLE L
Light Duty Light Duty Light Duty
(Table VI) (Table V) (Table VI)
.416 (10.5) .072 (1.8) .850 (21.6)
Approx. Approx. Approx.

Cable L Cable Cable
Range Entry K Range L
