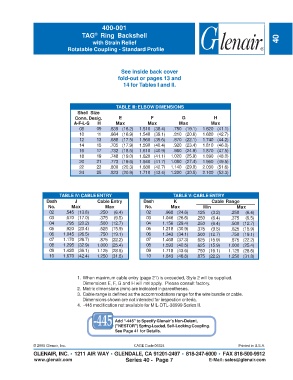

Page 355 - Circular Connector Backshells and Accessories
P. 355

400-001
                                   TAG  Ring Backshell
                                         ®
                                        with Strain Relief                                                           40
                              Rotatable Coupling - Standard Profile




                                                    See inside back cover
                                                  fold-out or pages 13 and
                                                     14 for Tables I and II.




                                                  TABLE III: ELBOW DIMENSIONS
                                 Shell Size
                                Conn. Desig.       E            F            G            H
                                A-F-L-S   H      Max           Max          Max          Max
                                  08     09    .639 (16.2)  1.510 (38.4)  .750 (19.1)  1.620 (41.1)
                                  10     11    .664 (16.9)  1.540 (39.1)  .810 (20.6)  1.680 (42.7)
                                  12     13    .688 (17.5)  1.560 (39.6)  .870 (22.1)  1.740 (44.2)
                                  14     15    .705 (17.9)  1.590 (40.4)  .920 (23.4)  1.810 (46.0)
                                  16     17    .732 (18.6)  1.610 (40.9)  .980 (24.9)  1.870 (47.5)
                                  18     19    .748 (19.0)  1.620 (41.1)  1.020 (25.9)  1.890 (48.0)
                                  20     21    .773 (19.6)  1.640 (41.7)  1.080 (27.4)  1.950 (49.5)
                                  22     23    .800 (20.3)  1.680 (42.7)  1.140 (29.0)  2.030 (51.6)
                                  24     25    .823 (20.9)  1.710 (43.4)  1.200 (30.5)  2.100 (53.3)




                          TABLE IV: CABLE ENTRY                          TABLE V: CABLE ENTRY
                    Dash        J         Cable Entry        Dash         K              Cable Range
                     No.       Max           Max              No.       Max           Min           Max
                      02    .545 (13.8)    .250  (6.4)        02      .968 (24.6)  .125  (3.2)   .250   (6.4)
                      03    .670 (17.0)    .375  (9.5)        03     1.046 (26.6)  .250  (6.4)   .375   (9.5)
                      04    .795 (20.2)    .500 (12.7)        04     1.156 (29.4)  .250  (6.4)   .500 (12.7)
                      05    .920 (23.4)    .625 (15.9)        05     1.218 (30.9)  .375  (9.5)   .625 (15.9)
                      06   1.045 (26.5)    .750 (19.1)        06     1.343 (34.1)  .500 (12.7)   .750 (19.1)
                      07   1.170 (29.7)    .875 (22.2)        07     1.468 (37.3)  .625 (15.9)   .875 (22.2)
                      08   1.295 (32.9)   1.000 (25.4)        08     1.593 (40.5)  .625 (15.9)  1.000 (25.4)
                      09   1.420 (36.1)   1.125 (28.6)        09     1.718 (43.6)  .750 (19.1)  1.125 (28.6)
                      10   1.670 (42.4)   1.250 (31.8)        10     1.843 (46.8)  .875 (22.2)  1.250 (31.8)




                                 1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
                                    Dimensions E, F, G and H will not apply.  Please consult factory.
                                 2. Metric dimensions (mm) are indicated in parentheses.
                                 3. Cable range is defined as the accommodations range for the wire bundle or cable.
                                    Dimensions shown are not intended for inspection criteria.
                                 4.  -445 modification not available for MIL-DTL-38999 Series II.


                                                 Add “-445” to Specify Glenair’s Non-Detent,
                                                 ("NESTOR") Spring-Loaded, Self-Locking Coupling.
                                                 See Page 41 for Details.


               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                        Series 40 -  Page 7               E-Mail: sales@glenair.com
