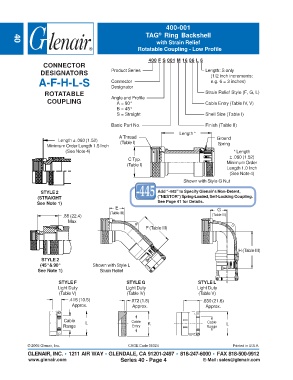

P. 352
400-001
TAG Ring Backshell
®
with Strain Relief
40
Rotatable Coupling - Low Profile
400 F S 001 M 16 06 L 6
CONNECTOR
DESIGNATORS Product Series Length: S only
(1/2 inch increments:
A-F-H-L-S Connector e.g. 6 = 3 inches)
Designator
ROTATABLE Angle and Profile Strain Relief Style (F, G, L)
COUPLING A = 90° Cable Entry (Table IV, V)
B = 45°
S = Straight Shell Size (Table I)
Basic Part No. Finish (Table II)
Length *
A Thread Ground
Length ± .060 (1.52) (Table I)
Minimum Order Length 1.5 Inch Spring
(See Note 4) * Length
± .060 (1.52)
C Typ.
(Table I) Minimum Order
Length 1.0 Inch
(See Note 4)
Shown with Style G Nut
STYLE 2 Add “-445” to Specify Glenair’s Non-Detent,
(STRAIGHT ("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Note 1) See Page 41 for Details.
E G
(Table III)
.88 (22.4) (Table III)
Max
F (Table III)
H (Table III)
STYLE 2
(45° & 90° Shown with Style L
See Note 1) Strain Relief
STYLE F STYLE G STYLE L
Light Duty Light Duty Light Duty
(Table V) (Table IV) (Table V)
.416 (10.5) .072 (1.8) .850 (21.6)
Approx. Approx. Approx.
Cable L Cable Cable
Range Entry K Range L
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 40 - Page 4 E-Mail: sales@glenair.com
