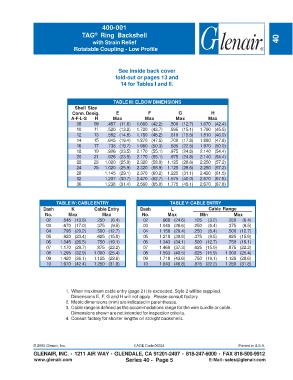

Page 353 - Circular Connector Backshells and Accessories

400-001
TAG Ring Backshell
®
with Strain Relief 40
Rotatable Coupling - Low Profile

See inside back cover
fold-out or pages 13 and
14 for Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. E F G H
A-F-L-S H Max Max Max Max
08 09 .457 (11.6) 1.660 (42.2) .500 (12.7) 1.670 (42.4)
10 11 .520 (13.2) 1.720 (43.7) .595 (15.1) 1.790 (45.5)
12 13 .582 (14.8) 1.780 (45.2) .610 (15.5) 1.810 (46.0)
14 15 .645 (16.4) 1.870 (47.5) .700 (17.8) 1.880 (47.8)
16 17 .738 (18.7) 1.980 (50.3) .885 (22.5) 1.970 (50.0)
18 19 .926 (23.5) 2.170 (55.1) .975 (24.8) 2.140 (54.4)
20 21 .926 (23.5) 2.170 (55.1) .975 (24.8) 2.140 (54.4)
22 23 1.020 (25.9) 2.320 (58.9) 1.125 (28.6) 2.250 (57.2)
24 25 1.020 (25.9) 2.320 (58.9) 1.125 (28.6) 2.250 (57.2)
28 1.145 (29.1) 2.370 (60.2) 1.225 (31.1) 2.420 (61.5)
32 1.207 (30.7) 2.470 (62.7) 1.575 (40.0) 2.670 (67.8)
36 1.238 (31.4) 2.560 (65.0) 1.775 (45.1) 2.670 (67.8)

TABLE IV: CABLE ENTRY TABLE V: CABLE ENTRY
Dash K Cable Entry Dash L Cable Range
No. Max Max No. Max Min Max
02 .545 (13.8) .250 (6.4) 02 .968 (24.6) .125 (3.2) .250 (6.4)
03 .670 (17.0) .375 (9.5) 03 1.046 (26.6) .250 (6.4) .375 (9.5)
04 .795 (20.2) .500 (12.7) 04 1.156 (29.4) .250 (6.4) .500 (12.7)
05 .920 (23.4) .625 (15.9) 05 1.218 (30.9) .375 (9.5) .625 (15.9)
06 1.045 (26.5) .750 (19.1) 06 1.343 (34.1) .500 (12.7) .750 (19.1)
07 1.170 (29.7) .875 (22.2) 07 1.468 (37.3) .625 (15.9) .875 (22.2)
08 1.295 (32.9) 1.000 (25.4) 08 1.593 (40.5) .625 (15.9) 1.000 (25.4)
09 1.420 (36.1) 1.125 (28.6) 09 1.718 (43.6) .750 (19.1) 1.125 (28.6)
10 1.670 (42.4) 1.250 (31.8) 10 1.843 (46.8) .875 (22.2) 1.250 (31.8)

1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
4. Consult factory for shorter lengths on straight backshells.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 40 - Page 5 E-Mail: sales@glenair.com
