Series 40
TAG Ring Backshells
®
Exploded Views
40

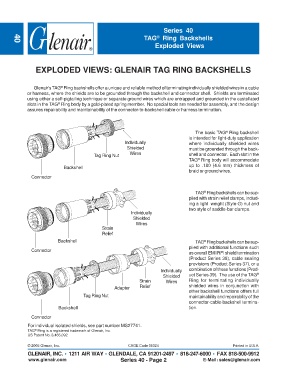

EXPLODED VIEWS: GLENAIR TAG RING BACKSHELLS

Glenair's TAG Ring backshells offer a unique and reliable method of terminating individually shielded wires in a cable
®
or harness, where the shields are to be grounded through the backshell and connector shell. Shields are terminated
using either a self-pigtailing technique or separate ground wires which are entrapped and grounded in the castellated
®
slots in the TAG Ring body by a gold-plated spring member. No special tools are needed for assembly, and the design
assures repairability and maintainability of the connector-to-backshell cable or harness termination.

The basic TAG Ring backshell
®
is intended for light-duty application
Individually where individually shielded wires
Shielded must be grounded through the back-
Wires shell and connector. Each slot in the
Tag Ring Nut
®
TAG Ring body will accommodate
up to .180 (4.6 mm) thickness of
Backshell
braid or ground wires.
Connector

TAG Ring backshells can be sup-
®
plied with strain relief clamps, includ-
ing a light weight (Style G) nut and
two style of saddle-bar clamps.
Individually
Shielded
Wires
Strain
Relief
Backshell TAG Ring backshells can be sup-
®
plied with additional functions such
Connector
as overall EMI/RFI shield termination
(Product Series 38), cable sealing
provisions (Product Series 37), or a
Individually combination of these functions (Prod-
Shielded uct Series 39). The use of the TAG ®
Strain Wires Ring for terminating individually
Adapter Relief shielded wires in conjunction with
other backshell functions offers full
Tag Ring Nut maintainability and repairability of the
connector-cable-backshell termina-
Backshell tion.
Connector
For individual isolated shields, see part number MS27741.
®
TAG Ring is a registered trademark of Glenair, Inc.
US Patent No. 3,465,092
