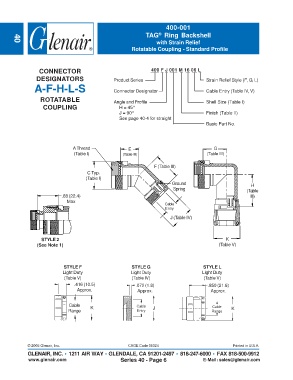

Page 354 - Circular Connector Backshells and Accessories

400-001
TAG Ring Backshell
®
with Strain Relief
40
Rotatable Coupling - Standard Profile

CONNECTOR 400 F J 001 M 16 06 L
DESIGNATORS Product Series Strain Relief Style (F, G, L)
A-F-H-L-S Connector Designator Cable Entry (Table IV, V)

ROTATABLE Angle and Profile Shell Size (Table I)
COUPLING H = 45°
J = 90° Finish (Table II)
See page 40-4 for straight
Basic Part No.

A Thread E G
(Table I) (Table III) (Table III)

F (Table III)
C Typ.
(Table I)
Ground H
Spring (Table
.88 (22.4) III)
Max
Cable
Entry
J (Table IV)

STYLE 2 K
(See Note 1) (Table V)

STYLE F STYLE G STYLE L
Light Duty Light Duty Light Duty
(Table V) (Table IV) (Table V)
.416 (10.5) .072 (1.8) .850 (21.6)
Approx. Approx. Approx.

Cable K Cable Cable
Range Entry J Range K

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 40 - Page 6 E-Mail: sales@glenair.com
