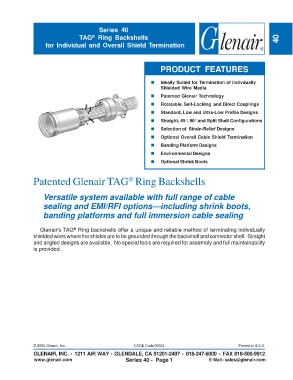

Page 349 - Circular Connector Backshells and Accessories

Series 40
TAG Ring Backshells 40
®
for Individual and Overall Shield Termination

PRODUCT FEATURES

„ „ „ „ „ Ideally Suited for Termination of Indivdually
Shielded Wire Media
„ „ „ „ „ Patented Glenair Technology
„ „ „ „ „ Rotatable, Self-Locking and Direct Couplings

„ „ „ „ „ Standard, Low and Ultra-Low Profile Designs
„ „ „ „ „ Straight, 45°, 90° and Split Shell Configurations
„ „ „ „ „ Selection of Strain-Relief Designs
„ „ „ „ „ Optional Overall Cable Shield Termination
„ „ „ „ „ Banding Platform Designs
„ „ „ „ „ Environmental Designs

„ „ „ „ „ Optional Shrink Boots

Patented Glenair TAG Ring Backshells
®

Versatile system available with full range of cable
sealing and EMI/RFI options—including shrink boots,

banding platforms and full immersion cable sealing

Glenair's TAG Ring backshells offer a unique and reliable method of terminating individually
®
shielded wires where the shields are to be grounded through the backshell and connector shell. Straight
and angled designs are available. No special tools are required for assembly and full maintainability
is provided.
