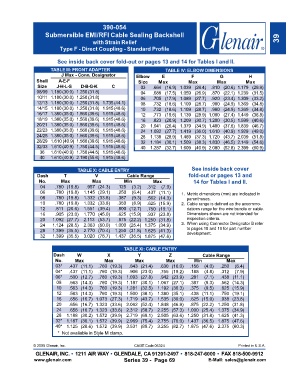

Page 331 - Circular Connector Backshells and Accessories

390-054
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief 39
Type F - Direct Coupling - Standard Profile

See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: FRONT ADAPTER TABLE IV: ELBOW DIMENSIONS
J Max - Conn. Designator Elbow E F G H
Shell A-E-F Size Max Max Max Max
Size J-H-L-S D-B-G-K C 03 .664 (16.9) 1.039 (26.4) .810 (20.6) 1.179 (29.9)
08/09 1.180(30.0) 1.250(31.8) 04 .688 (17.5) 1.059 (26.9) .870 (22.1) 1.239 (31.5)
10/11 1.180(30.0) 1.250(31.8) 06 .705 (17.9) 1.089 (27.7) .920 (23.4) 1.309 (33.2)
12/13 1.180(30.0) 1.250(31.8) 1.735(44.1) 08 .732 (18.6) 1.109 (28.7) .980 (24.9) 1.369 (34.8)
14/15 1.180(30.0) 1.250(31.8) 1.915(48.6) 10 .732 (18.6) 1.109 (28.7) .980 (24.9) 1.369 (34.8)
16/17 1.380(35.0) 1.560(39.6) 1.915(48.6) 12 .773 (19.6) 1.139 (28.9) 1.080 (27.4) 1.449 (36.8)
18/19 1.380(35.0) 1.560(39.6) 1.915(48.6) 16 .823 (20.9) 1.209 (30.7) 1.200 (30.5) 1.599 (40.6)
20/21 1.380(35.0) 1.560(39.6) 1.915(48.6) 20 1.041 (26.4) 1.379 (34.9) 1.480 (37.6) 1.839 (46.7)
22/23 1.380(35.0) 1.560(39.6) 1.915(48.6) 24 1.092 (27.7) 1.419 (36.0) 1.610 (40.9) 1.929 (49.0)
24/25 1.380(35.0) 1.560(39.6) 1.915(48.6) 28 1.138 (28.9) 1.469 (37.3) 1.720 (43.7) 2.039 (51.8)
28/29 1.610 (40.9) 1.560(39.6) 1.915(48.6) 32 1.184 (30.1) 1.509 (38.3) 1.830 (46.5) 2.149 (54.6)
32/33 1.610(40.9) 1.750(44.5) 1.915(48.6) 40 1.287 (32.7) 1.609 (40.9) 2.080 (52.8) 2.399 (60.9)
36 1.610(40.9) 1.750(44.5) 1.915(48.6)
40 1.610(40.9) 2.190(55.6) 1.915(48.6)

TABLE X: CABLE ENTRY See inside back cover
Dash T V Cable Range fold-out or pages 13 and
No. Max Max Min Max 14 for Tables I and II.
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9)
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) 1. Metric dimensions (mm) are indicated in
08 .780 (19.8) 1.332 (33.8) .387 (9.3) .562 (14.3) parentheses.
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) 2. Cable range is defined as the accommo-
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) dations range for the wire bundle or cable.
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) Dimensions shown are not intended for
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) inspection criteria.
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) 3. When using Connector Designator B refer
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) to pages 18 and 19 for part number
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) development.

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .387 (9.3) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.437 (36.5) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.875 (47.6) 2.375 (60.3)
* Not available in Style M clamp.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENA INC. • 1211 AIR WAY • GLENDA 91201-2497 • 818-247-6000 • FA 818-500-9912
www.glenair.com Series 39 - Page 69 sales@glenair.com
