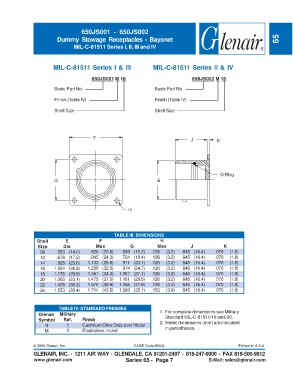

650JS001 - 650JS002
Dummy Stowage Receptacles - Bayonet 65
MIL-C-81511 Series I, II, III and IV

MIL-C-81511 Series I & III MIL-C-81511 Series II & IV

650JS001 M 16 650JS002 M 16
Basic Part No. Basic Part No.

Finish (Table IV) Finish (Table IV)

Shell Size Shell Size

F
J K

O-Ring
G E

H

TABLE III: DIMENSIONS
Shell E F H
Size Dia Max G Max J K
08 .553 (14.0) .820 (20.8) .599 (15.2) .126 (3.2) .645 (16.4) .070 (1.8)
10 .678 (17.2) .945 (24.0) .724 (18.4) .126 (3.2) .645 (16.4) .070 (1.8)
14 .928 (23.6) 1.133 (28.8) .911 (23.1) .126 (3.2) .645 (16.4) .070 (1.8)
16 1.054 (26.8) 1.258 (32.0) .974 (24.7) .126 (3.2) .645 (16.4) .070 (1.8)
18 1.178 (29.9) 1.351 (34.3) 1.067 (27.1) .126 (3.2) .645 (16.4) .070 (1.8)
20 1.303 (33.1) 1.475 (37.5) 1.161 (29.5) .126 (3.2) .645 (16.4) .070 (1.8)
22 1.428 (36.3) 1.570 (39.9) 1.255 (31.9) .126 (3.2) .645 (16.4) .070 (1.8)
24 1.553 (39.4) 1.711 (43.5) 1.380 (35.1) .153 (3.9) .645 (16.4) .070 (1.8)

TABLE IV: STANDARD FINISHES
Glenair Military 1. For complete dimensions see Military
Standard MIL-C-81511/19 and /30.
Symbol Ref. Finish 2. Metric dimensions (mm) are indicated
N 1 Cadmium Olive Drab over Nickel
M 2 Electroless nickel in parentheses.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 65 - Page 7 E-Mail: sales@glenair.com
