650GS001

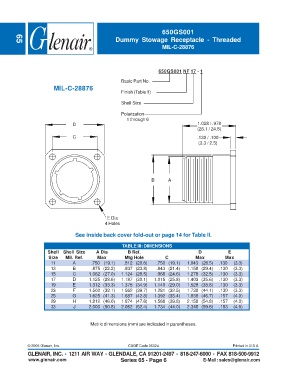

Dummy Stowage Receptacle - Threaded
65
MIL-C-28876

650GS001 NF 17 - 1
Basic Part No.
MIL-C-28876
Finish (Table II)

Shell Size

Polarization
1 through 6
D 1.028 / .978
(26.1 / 24.8)
C .130 / .100
(3.3 / 2.5)

B A

E Dia
4 Holes
See inside back cover fold-out or page 14 for Table II.

TABLE III: DIMENSIONS
Shell Shell Size A Dia B Ref. D E
Size Mil. Ref. Max Mtg Hole C Max Max
11 A .750 (19.1) .812 (20.6) .750 (19.1) 1.043 (26.5) .130 (3.3)
13 B .875 (22.2) .937 (23.8) .843 (21.4) 1.158 (29.4) .130 (3.3)
15 C 1.062 (27.0) 1.124 (28.5) .968 (24.6) 1.278 (32.5) .130 (3.3)
17 D 1.125 (28.6) 1.187 (30.1) 1.015 (25.8) 1.403 (35.6) .130 (3.3)
19 E 1.312 (33.3) 1.375 (34.9) 1.140 (29.0) 1.528 (38.8) .130 (3.3)
23 F 1.500 (38.1) 1.562 (39.7) 1.281 (32.5) 1.738 (44.1) .130 (3.3)
25 G 1.625 (41.3) 1.687 (42.8) 1.392 (35.4) 1.838 (46.7) .157 (4.0)
29 H 1.812 (46.0) 1.874 (47.6) 1.568 (39.8) 2.158 (54.8) .157 (4.0)
33 J 2.000 (50.8) 2.062 (52.4) 1.734 (44.0) 2.348 (59.6) .183 (4.6)

Metric dimensions (mm) are indicated in parentheses.
