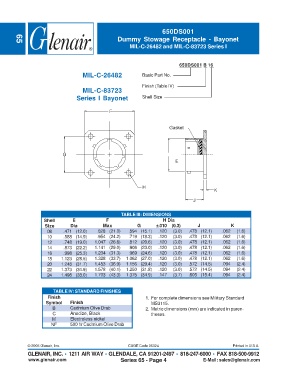

650DS001
Dummy Stowage Receptacle - Bayonet
MIL-C-26482 and MIL-C-83723 Series I
65

650DS001 B 16

MIL-C-26482 Basic Part No.

Finish (Table IV)
MIL-C-83723
Series I Bayonet Shell Size

F

Gasket

G
E

H
K

J

TABLE III: DIMENSIONS
Shell E F H Dia
Size Dia Max G ±.010 (0.3) J K
08 .471 (12.0) .828 (21.0) .594 (15.1) .120 (3.0) .478 (12.1) .062 (1.6)
10 .588 (14.9) .954 (24.2) .719 (18.3) .120 (3.0) .478 (12.1) .062 (1.6)
12 .748 (19.0) 1.047 (26.6) .812 (20.6) .120 (3.0) .478 (12.1) .062 (1.6)
14 .873 (22.2) 1.141 (29.0) .906 (23.0) .120 (3.0) .478 (12.1) .062 (1.6)
16 .998 (25.3) 1.234 (31.3) .969 (24.6) .120 (3.0) .478 (12.1) .062 (1.6)
18 1.123 (28.5) 1.328 (33.7) 1.062 (27.0) .120 (3.0) .478 (12.1) .062 (1.6)
20 1.248 (31.7) 1.453 (36.9) 1.156 (29.4) .120 (3.0) .572 (14.5) .094 (2.4)
22 1.373 (34.9) 1.578 (40.1) 1.250 (31.8) .120 (3.0) .572 (14.5) .094 (2.4)
24 1.498 (38.0) 1.703 (43.3) 1.375 (34.9) .147 (3.7) .605 (15.4) .094 (2.4)

TABLE IV: STANDARD FINISHES
Finish 1. For complete dimensions see Military Standard
Symbol Finish MS3115.
B Cadmium Olive Drab 2. Metric dimensions (mm) are indicated in paren-
C Anodize, Black theses.
M Electroless nickel
NF 500 hr Cadmium Olive Drab
