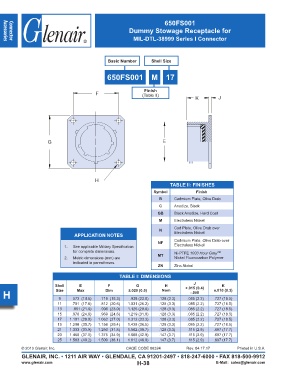

Page 576 - Circular Connector Backshells and Accessories

650FS001
Dummy Stowage Receptacle for
MIL-DTL-38999 Series I Connector
Connector
Accessories

Basic Number Shell Size

650FS001 M 17

Finish
F (Table II)
K J

G E

H
TABLE II: FINISHES
Symbol Finish
B Cadmium Plate, Olive Drab
C Anodize, Black
GB Black Anodize, Hard Coat
M Electroless Nickel
N Cad Plate, Olive Drab over
Electroless Nickel
APPLICATION NOTES
Cadmium Plate, Olive Drab over
NF
1. See applicable Military Specification Electroless Nickel
for complete dimensions. Ni-PTFE 1000 Hour Grey TM
2. Metric dimensions (mm) are MT Nickel Fluorocarbon Polymer
indicated in parentheses.
ZN Zinc-Nickel
TABLE I: DIMENSIONS
J
Shell E F G H +.015 (0.4) K
Nom
Dim
Max
H Size 572 (14.5) .719 (18.3) ±.020 (0.5) .128 (3.3) .085 (2.2) ±.010 (0.3)
-.000
.727 (18.5)
9
.938 (23.8)
11 .701 (17.8) .812 (20.6) 1.031 (26.2) .128 (3.3) .085 (2.2) .727 (18.5)
13 .851 (21.6) .906 (23.0) 1.125 (28.6) .128 (3.3) .085 (2.2) .727 (18.5)
15 .976 (24.8) .969 (24.6) 1.219 (31.0) .128 (3.3) .085 (2.2) .727 (18.5)
17 1.101 (28.0) 1.062 (27.0) 1.312 (33.3) .128 (3.3) .085 (2.2) .727 (18.5)
19 1.208 (30.7) 1.156 (29.4) 1.438 (36.5) .128 (3.3) .085 (2.2) .727 (18.5)
21 1.333 (33.9) 1.250 (31.8) 1.562 (39.7) .128 (3.3) .115 (2.9) .697 (17.7)
23 1.458 (37.0) 1.375 (34.9) 1.688 (42.9) .147 (3.7) .115 (2.9) .697 (17.7)
25 1.583 (40.2) 1.500 (38.1) 1.812 (46.0) .147 (3.7) .115 (2.9) .697 (17.7)
© 2010 Glenair, Inc. CAGE CODE 06324 Rev. 04.17.17 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com H-38 E-Mail: sales@glenair.com
