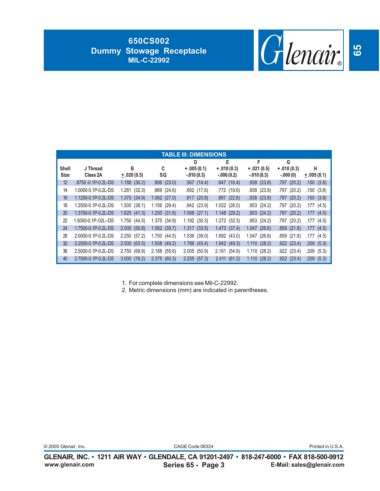

650CS002
Dummy Stowage Receptacle 65
MIL-C-22992

TABLE III: DIMENSIONS
D E F G
Shell J Thread B C + .005 (0.1) + .010 (0.3) + .021 (0.5) + .010 (0.3) H
Size Class 2A + .020 (0.5) SQ -.010 (0.3) -.006 (0.2) -.010 (0.3) -.000 (0) + .005 (0.1)
12 .8750 -0.1P-0.2L-DS 1.188 (30.2) .906 (23.0) .567 (14.4) .647 (16.4) .938 (23.8) .797 (20.2) .150 (3.8)
14 1.0000-0.1P-0.2L-DS 1.281 (32.3) .969 (24.6) .692 (17.6) .772 (19.6) .938 (23.8) .797 (20.2) .150 (3.8)
16 1.1250-0.1P-0.2L-DS 1.375 (34.9) 1.062 (27.0) .817 (20.8) .897 (22.8) ..938 (23.8) .797 (20.2) .150 (3.8)
18 1.2500-0.1P-0.2L-DS 1.500 (38.1) 1.156 (29.4) .942 (23.9) 1.022 (26.0) .953 (24.2) .797 (20.2) .177 (4.5)
20 1.3750-0.1P-0.2L-DS 1.625 (41.3) 1.250 (31.8) 1.068 (27.1) 1.148 (29.2) .953 (24.2) .797 (20.2) .177 (4.5)
22 1.5000-0.1P.-02L--DS 1.750 (44.5) 1.375 (34.9) 1.192 (30.3) 1.272 (32.3) .953 (24.2) .797 (20.2) .177 (4.5)
24 1.7500-0.1P-0.2L-DS 2.000 (50.8) 1.562 (39.7) 1.317 (33.5) 1.473 (37.4) 1.047 (26.6) .859 (21.8) .177 (4.5)
28 2.0000-0.1P-0.2L-DS 2.250 (57.2) 1.750 (44.5) 1.536 (39.0) 1.692 (43.0) 1.047 (26.6) .859 (21.8) .177 (4.5)
32 2.2500-0.1P-0.2L-DS 2.500 (63.5) 1.938 (49.2) 1.786 (45.4) 1.942 (49.3) 1.110 (28.2) .922 (23.4) .209 (5.3)
36 2.5000-0.1P-0.2L-DS 2.750 (69.9) 2.188 (55.6) 2.005 (50.9) 2.161 (54.9) 1.110 (28.2) .922 (23.4) .209 (5.3)
40 2.7500-0.1P-0.2L-DS 3.000 (76.2) 2.375 (60.3) 2.255 (57.3) 2.411 (61.2) 1.110 (28.2) .922 (23.4) .209 (5.3)

1. For complete dimensions see Mil-C-22992.
2. Metric dimensions (mm) are indicated in parentheses.
