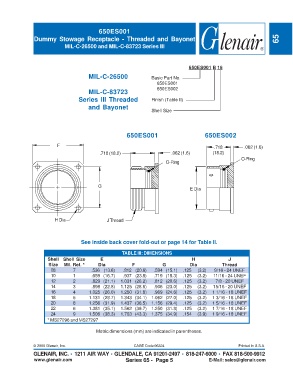

Page 571 - Circular Connector Backshells and Accessories

650ES001
Dummy Stowage Receptacle - Threaded and Bayonet 65
MIL-C-26500 and MIL-C-83723 Series III

650ES001 B 16
MIL-C-26500 Basic Part No.
650ES001
MIL-C-83723 650ES002
Series III Threaded Finish (Table II)
and Bayonet
Shell Size

650ES001 650ES002

F .718 .062 (1.6)
.718 (18.2) .062 (1.6) (18.2)
O-Ring
O-Ring

G
E Dia

H Dia J Thread

See inside back cover fold-out or page 14 for Table II.

TABLE III: DIMENSIONS
Shell Shell Size E H J
Size Mil. Ref. * Dia F G Dia Thread
08 7 .536 (13.6) .812 (20.6) .594 (15.1) .125 (3.2) 9/16 - 24 UNEF
10 1 .659 (16.7) .937 (23.8) .719 (18.3) .125 (3.2) 11/16 - 24 UNEF
12 2 .829 (21.1) 1.031 (26.2) .812 (20.6) .125 (3.2) 7/8 - 20 UNEF
14 3 .898 (22.8) 1.125 (28.6) .906 (23.0) .125 (3.2) 15/16 - 20 UNEF
16 4 1.025 (26.0) 1.250 (31.8) .969 (24.6) .125 (3.2) 1 1/16 - 18 UNEF
18 5 1.131 (28.7) 1.343 (34.1) 1.062 (27.0) .125 (3.2) 1 3/16 - 18 UNEF
20 8 1.256 (31.9) 1.437 (36.5) 1.156 (29.4) .125 (3.2) 1 5/16 - 18 UNEF
22 6 1.381 (35.1) 1.562 (39.7) 1.250 (31.8) .125 (3.2) 1 7/16 - 18 UNEF
24 9 1.506 (38.3) 1.703 (43.3) 1.375 (34.9) .154 (3.9) 1 9/16 - 18 UNEF
* MS27296 and MS27297

Metric dimensions (mm) are indicated in parentheses.
