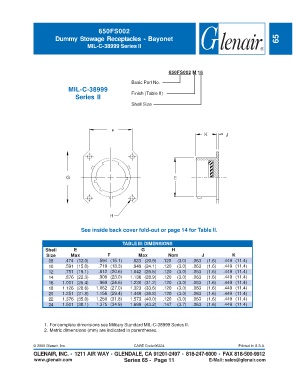

650FS002
Dummy Stowage Receptacles - Bayonet 65
MIL-C-38999 Series II

650FS002 M 16

Basic Part No.
MIL-C-38999 Finish (Table II)
Series II
Shell Size

F
K J

G E

H

See inside back cover fold-out or page 14 for Table II.

TABLE III: DIMENSIONS
Shell E G H
Size Max F Max Nom J K
08 .474 (12.0) .594 (15.1) .823 (20.9) .120 (3.0) .063 (1.6) .449 (11.4)
10 .591 (15.0) .719 (18.3) .949 (24.1) .120 (3.0) .063 (1.6) .449 (11.4)
12 .751 (19.1) .812 (20.6) 1.042 (26.5) .120 (3.0) .063 (1.6) .449 (11.4)
14 .876 (22.3) .906 (23.0) 1.136 (28.9) .120 (3.0) .063 (1.6) .449 (11.4)
16 1.001 (25.4) .969 (24.6) 1.230 (31.2) .120 (3.0) .063 (1.6) .449 (11.4)
18 1.126 (28.6) 1.062 (27.0) 1.323 (33.6) .120 (3.0) .063 (1.6) .449 (11.4)
20 1.251 (31.8) 1.156 (29.4) 1.449 (36.8) .120 (3.0) .063 (1.6) .449 (11.4)
22 1.376 (35.0) 1.250 (31.8) 1.573 (40.0) .120 (3.0) .063 (1.6) .449 (11.4)
24 1.501 (38.1) 1.375 (34.9) 1.699 (43.2) .147 (3.7) .063 (1.6) .449 (11.4)

1. For complete dimensions see Military Standard MIL-C-38999 Series II.
2. Metric dimensions (mm) are indicated in parentheses.
