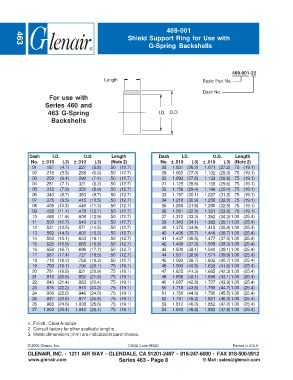

Page 512 - Circular Connector Backshells and Accessories

469-001
Shield Support Ring for Use with
G-Spring Backshells
463

469-001-22
Length Basic Part No.

Dash No.
For use with
Series 460 and
463 G-Spring I.D. O.D.
Backshells

Dash I.D. O.D. Length Dash I.D. O.D. Length
No. ± .010 (.3) ± .010 (.3) (Note 2) No. ± .010 (.3) ± .010 (.3) (Note 2)
01 .187 (4.7) .227 (5.8) .50 (12.7) 28 1.031 (26.2) 1.071 (27.2) .75 (19.1)
02 .218 (5.5) .258 (6.6) .50 (12.7) 29 1.062 (27.0) 1.102 (28.0) .75 (19.1)
03 .250 (6.4) .290 (7.4) .50 (12.7) 30 1.093 (27.8) 1.133 (28.8) .75 (19.1)
04 .281 (7.1) .321 (8.2) .50 (12.7) 31 1.125 (28.6) 1.165 (29.6) .75 (19.1)
05 .312 (7.9) .352 (8.9) .50 (12.7) 32 1.156 (29.4) 1.196 (30.4) .75 (19.1)
06 .343 (8.7) .383 (9.7) .50 (12.7) 33 1.187 (30.1) 1.227 (31.2) .75 (19.1)
07 .375 (9.5) .415 (10.5) .50 (12.7) 34 1.218 (30.9) 1.258 (32.0) .75 (19.1)
08 .406 (10.3) .446 (11.3) .50 (12.7) 35 1.250 (31.8) 1.290 (32.8) .75 (19.1)
09 .438 (11.1) .478 (12.1) .50 (12.7) 36 1.281 (32.5) 1.321 (33.6) .75 (19.1)
10 .468 (11.9) .508 (12.9) .50 (12.7) 37 1.312 (33.3) 1.352 (34.3) 1.00 (25.4)
11 .500 (12.7) .540 (13.7) .50 (12.7) 38 1.343 (34.1) 1.383 (35.1) 1.00 (25.4)
12 .531 (13.5) .571 (14.5) .50 (12.7) 39 1.375 (34.9) 1.415 (35.9) 1.00 (25.4)
13 .562 (14.3) .602 (15.3) .50 (12.7) 40 1.406 (35.7) 1.446 (36.7) 1.00 (25.4)
14 .593 (15.1) .633 (16.1) .50 (12.7) 41 1.437 (36.5) 1.477 (37.5) 1.00 (25.4)
15 .625 (15.9) .665 (16.9) .50 (12.7) 42 1.468 (37.3) 1.508 (38.3) 1.00 (25.4)
16 .656 (16.7) .696 (17.7) .50 (12.7) 43 1.500 (38.1) 1.540 (39.1) 1.00 (25.4)
17 .687 (17.4) .727 (18.5) .50 (12.7) 44 1.531 (38.9) 1.571 (39.9) 1.00 (25.4)
18 .718 (18.2) .758 (19.3) .50 (12.7) 45 1.562 (39.7) 1.602 (40.7) 1.00 (25.4)
19 .750 (19.1) .790 (20.1) .75 (19.1) 46 1.593 (40.5) 1.633 (41.5) 1.00 (25.4)
20 .781 (19.8) .821 (20.9) .75 (19.1) 47 1.625 (41.3) 1.665 (42.3) 1.00 (25.4)
21 .812 (20.6) .852 (21.6) .75 (19.1) 48 1.656 (42.1) 1.696 (43.1) 1.00 (25.4)
22 .843 (21.4) .883 (22.4) .75 (19.1) 49 1.687 (42.8) 1.727 (43.9) 1.00 (25.4)
23 .875 (22.2) .915 (23.2) .75 (19.1) 50 1.718 (43.6) 1.758 (44.7) 1.00 (25.4)
24 .906 (23.0) .946 (24.0) .75 (19.1) 51 1.750 (44.5) 1.790 (45.5) 1.00 (25.4)
25 .937 (23.8) .977 (24.8) .75 (19.1) 52 1.781 (45.2) 1.821 (46.3) 1.00 (25.4)
26 .968 (24.6) 1.008 (25.6) .75 (19.1) 53 1.812 (46.0) 1.852 (47.0) 1.00 (25.4)
27 1.000 (25.4) 1.040 (26.4) .75 (19.1) 54 1.843 (46.8) 1.883 (47.8) 1.00 (25.4)

1. Finish : Clear Anodize
2. Consult factory for other available lengths.
3. Metric dimensions (mm) are indicated in parentheses.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 463 - Page 8 E-Mail: sales@glenair.com
