Page 380 - Circular Connector Backshells and Accessories

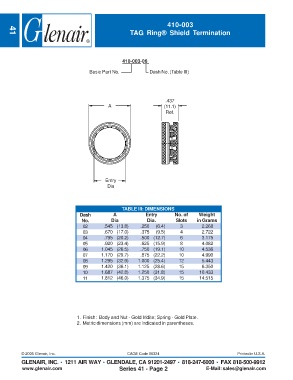

410-003
TAG Ring® Shield Termination
41

410-003-06

Basic Part No. Dash No. (Table III)

.437
A (11.1)
Ref.

Entry
Dia

TABLE III: DIMENSIONS
Dash A Entry No. of Weight
No. Dia Dia. Slots in Grams
02 .545 (13.8) .250 (6.4) 3 2.268
03 .670 (17.0) .375 (9.5) 4 2.722
04 .795 (20.2) .500 (12.7) 6 3.175
05 .920 (23.4) .625 (15.9) 8 4.082
06 1.045 (26.5) .750 (19.1) 10 4.536
07 1.170 (29.7) .875 (22.2) 10 4.990
08 1.295 (32.9) 1.000 (25.4) 12 5.443
09 1.420 (36.1) 1.125 (28.6) 15 6.350
10 1.687 (42.8) 1.250 (31.8) 15 10.433
11 1.812 (46.0) 1.375 (34.9) 15 14.515

1. Finish: Body and Nut - Gold Iridite; Spring - Gold Plate.
2. Metric dimensions (mm) are indicated in parentheses.
