Charging Inlets

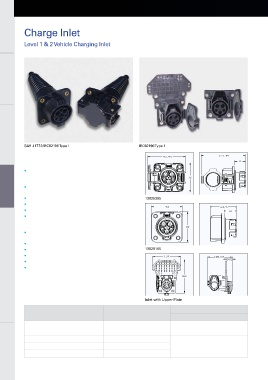

HV Auxiliary Modules Charge Inlet

Level 1 & 2 Vehicle Charging Inlet
HV Auxiliary Modules

HV Power Conversion

Chargers & Charging Cables SAE J1772/IEC62196 Type I IEC62196 Type I

Application
• Plug-in hybrid and electric vehicle charge inlet
Charging Inlets Charging Inlets Description

• Interface complies with SAE J1772 and IEC62196
Type I standard
• Panel mounts to vehicle
• Protective grommet/wire dress mounts to inlet 13826395
• Available with latching cover or without cover
• Cover mounting features allow latch to open left or right
Internal Battery Connections • Supports: AC Level 1 (15A, 120V) and AC Level 2 13829165
Performance

(30A, 240V)
• Voltage: 600V maximum rating
• Temperature range: -40°C to +85°C
• Validation: UL recognized, Delphi GTP
• Electrical protection: IP2XB
• Design life: 10,000 mating cycles

HV Electrical Centers

Inlet with Upper Plate

Mating Information

Configuration
No cover
Cover opens left Assembly Part Number Vehicle Mounting Detail
13829165
13827259
HV/LV Wiring Assemblies 60 Cover opens right, without upper plate Call for availability -
13826395
Cover opens right, with upper plate
Cover opens left, with upper plate
Call for availability
Call for availability

Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change
without notice. To verify product information, please contact a Delphi representative.
