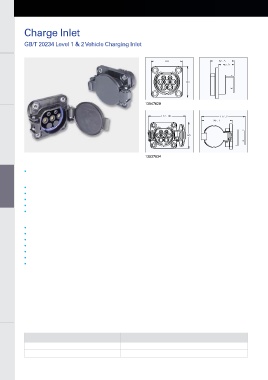

Charging Inlets
HV Auxiliary Modules Charge Inlet

GB/T 20234 Level 1 & 2 Vehicle Charging Inlet
HV Auxiliary Modules

HV Power Conversion

13947629

Chargers & Charging Cables

Application 13937834
• Plug-in hybrid and electric vehicle charge inlet
Charging Inlets Charging Inlets Description

• Interface complies with GB/T 20234 standard
• Optional electrical lock and emergency release function
• Optional cover for cable routing
• Available with latching cover, plugging cover or without cover
• Cover mounting features allow latch to open left or right
Internal Battery Connections • Supports: AC 220V/50Hz, 10A/16A/32A
Performance

• Voltage: 600V maximum rating
• Temperature range: -40°C to +85°C
• Validation: CCC recognized, Delphi GTP
• Electrical protection: IP2XB
• Sealing protection: IP6X4, IP6X5
• Design life: 10,000 mating cycles

HV Electrical Centers

HV/LV Wiring Assemblies 62 Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change
Configuration
Assembly Part Number
No cover

13947629

13937834

With latching cover, opens right
without notice. To verify product information, please contact a Delphi representative.
