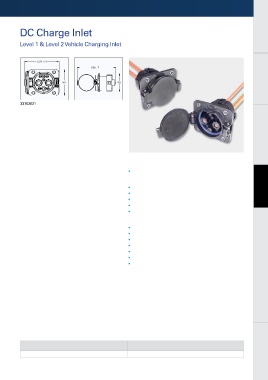

Page 65 - Connecting today for a greener tomorrow

DC Charge Inlet HV Auxiliary Modules

Level 1 & Level 2 Vehicle Charging Inlet
HV Auxiliary Modules

33103831 HV Power Conversion

Application Chargers & Charging Cables
• Plug-in hybrid and electric vehicle DC Charge inlet
Description
• Interface complies with GB/T 20234 standard Charging Inlets
• Optional Shielding function
• Optional 90° Adapter
Charging Inlets
• Latching cover
• Cover mounting features allow latch to open left
Performance
• Supports: 125A/250A
• Voltage: 600V maximum rating
• Temperature range: -40°C to +85°C Internal Battery Connections
• Validation: CCC recognized, Delphi GTP
• Electrical protection: IP2XB
• Sealing protection: IP6X4, IP6X5
• Design life: 10,000 mating cycles HV Electrical Centers

Configuration Assembly Part Number HV/LV Wiring Assemblies
With latching cover, opens left 33103831
