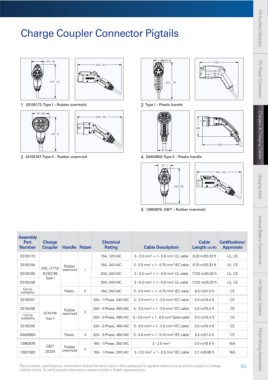

Charge Coupler Connector Pigtails HV Auxiliary Modules

HV Auxiliary Modules

1 33105172: Type I – Rubber overmold 2 Type I – Plastic handle HV Power Conversion

3 33155747: Type II – Rubber overmold 4 33400850: Type II – Plastic handle Chargers & Charging Cables
Chargers & Charging Cables

5 13960876: GB/T – Rubber overmold Charging Inlets

Assembly
Part Charge Electrical Cable Certifications/ Internal Battery Connections
Number Coupler Handle Picture Rating Cable Description Length (m/ft) Approvals
2
2
33105172 15A, 120 VAC 3 - 2.0 mm + 1 - 0.8 mm UL cable 6.20 m/20.33 ft UL, CE
33105194 Rubber 16A, 240 VAC 3 - 2.5 mm + 1 - 0.75 mm IEC cable 6.20 m/20.33 ft UL, CE
2
2
SAE J1772/ overmold 1
33105183 IEC62196 20A, 240 VAC 3 - 3.0 mm + 1 - 0.8 mm UL cable 7.725 m/25.00 ft UL, CE
2
2
Type I
33105199 30A, 240 VAC 3 - 5.0 mm + 1 - 0.8 mm UL cable 7.725 m/25.00 ft UL, CE
2
2
Call for 2 2
availability Plastic 2 16A, 240 VAC 3 - 2.5 mm + 1 - 0.75 mm IEC cable 6.5 m/21.3 ft CE
33155747 20A - 1-Phase, 240 VAC 3 - 2.5 mm² + 1 - 0.5 mm² IEC cable 5.0 m/16.4 ft CE HV Electrical Centers
33155746 Rubber 20A - 3-Phase, 480 VAC 5 - 2.5 mm² + 1 - 0.5 mm² IEC cable 5.0 m/16.4 ft CE
IEC62196 overmold 3
Call for

availability Type II 20A - 3-Phase, 480 VAC 5 - 2.5 mm² + 1 - 0.5 mm² Spiral cable 5.0 m/16.4 ft CE
33155745 32A - 3-Phase, 480 VAC 5 - 6.0 mm² + 1 - 0.5 mm² IEC cable 5.0 m/16.4 ft CE
33400850 Plastic 4 32A - 3-Phase, 480 VAC 5 - 4.0 mm² + 1 - 0.75 mm² IEC cable 6.5 m/21.3 ft CE
13960876 16A - 1-Phase, 250 VAC 3 - 2.5 mm 2 5.0 m/16.4 ft N/A
GB/T Rubber 5
13937383 20234 overmold 16A - 1-Phase, 250 VAC 3 - 2.5 mm + 1 - 0.5 mm IEC cable 2.7 m/8.86 ft N/A HV/LV Wiring Assemblies
2
2

Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change 55
without notice. To verify product information, please contact a Delphi representative.
