Chargers & Charging Cables

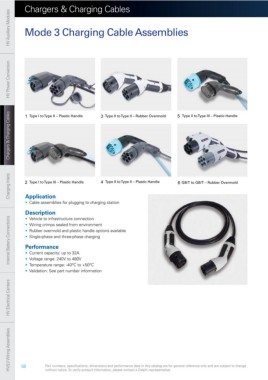

HV Auxiliary Modules Mode 3 Charging Cable Assemblies
HV Auxiliary Modules
HV Power Conversion
Chargers & Charging Cables Chargers & Charging Cables 1 Type I to Type II – Plastic Handle 3 Type II to Type II – Rubber Overmold 5 Type II to Type III – Plastic Handle
Charging Inlets 2 Type I to Type III – Plastic Handle 4 Type II to Type II – Plastic Handle 6 GB/T to GB/T – Rubber Overmold
Application
• Cable assemblies for plugging to charging station
Description
Internal Battery Connections • Rubber overmold and plastic handle options available
• Vehicle to infrastructure connection
• Wiring crimps sealed from environment
• Single-phase and three-phase charging
Performance
• Current capacity: up to 32A
• Voltage range: 240V to 480V
• Temperature range: -40°C to +50°C
• Validation: See part number information
HV Electrical Centers
HV/LV Wiring Assemblies 56 Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change
without notice. To verify product information, please contact a Delphi representative.
