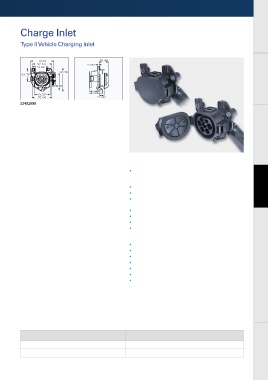

Charge Inlet HV Auxiliary Modules

Type II Vehicle Charging Inlet
HV Auxiliary Modules

33402098 HV Power Conversion

Application Chargers & Charging Cables
• Plug-in hybrid and electric vehicle charge inlet
Description
• Interface complies with IEC62196 Type II standard Charging Inlets
• Panel mounts to vehicle
• Integrated thermal circuit breaker to prevent abnormal
Charging Inlets
temperature increase inlet connector only
• Cover provides dust protection
• Designed to drain fluid if introduced to inlet
• Holes provided for coupler lock actuator
• Available with cover opening right or left

Performance Internal Battery Connections
• Supports single-phase or three-phase power supply
• Supports: (16A, 230V) and (63A, 480V)
• Voltage: 400V maximum rating
• Temperature range: -40°C to +85°C
• Electrical protection: IP2XB
• Sealing protection: IP44 (connector/inlet mated)
• Design life: 10,000+ mating cycles HV Electrical Centers

Configuration Assembly Part Number

Right open cover, wires exit left 33402098
Left open cover, wires exit right 33402097 HV/LV Wiring Assemblies

Part numbers, specifications, dimensions and performance data in this catalog are for general reference only and are subject to change 61
without notice. To verify product information, please contact a Delphi representative.
