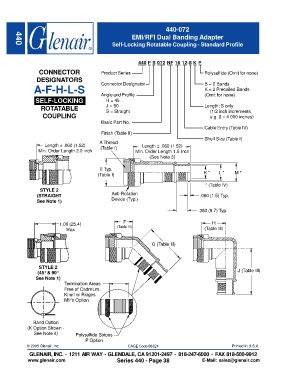

440-072
EMI/RFI Dual Banding Adapter
Self-Locking Rotatable Coupling - Standard Profile
440

440 F S 072 NF 16 12-8 K P
CONNECTOR Product Series Polysulfide (Omit for none)
DESIGNATORS
A-F-H-L-S Connector Designator B = 2 Bands
K = 2 Precoiled Bands
Angle and Profile (Omit for none)
SELF-LOCKING H = 45°
ROTATABLE J = 90° Length: S only
S = Straight
(1/2 inch increments,
COUPLING e.g. 8 = 4.000 inches)
Basic Part No.
Cable Entry (Table IV)
Finish (Table II)
Shell Size (Table I)
A Thread
Length ± .060 (1.52) (Table I) Length ± .060 (1.52)
Min. Order Length 2.0 inch Min. Order Length 1.5 Inch
(See Note 3)

E Typ.
(Table I) K * L * M *

* (Table IV)
STYLE 2
(STRAIGHT Anti-Rotation .060 (1.5) Typ.
See Note 1) Device (Typ.)
.380 (9.7) Typ.

F H
1.00 (25.4)
Max (Table III) (Table III)

G (Table III)

STYLE 2
(45° & 90° J (Table III)
See Note 1)
Termination Areas
Free of Cadmium.
Knurl or Ridges
Mfr's Option

Band Option
(K Option Shown -
See Note 4) Polysulfide Stripes
P Option
