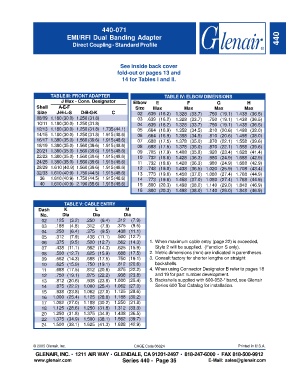

P. 421
440-071
EMI/RFI Dual Banding Adapter 440
Direct Coupling - Standard Profile
See inside back cover
fold-out or pages 13 and
14 for Tables I and II.
TABLE III: FRONT ADAPTER TABLE IV: ELBOW DIMENSIONS
J Max - Conn. Designator Elbow E F G H
Shell A-E-F Size Max Max Max Max
Size J-H-L-S D-B-G-K C 02 .639 (16.2) 1.328 (33.7) .750 (19.1) 1.438 (36.5)
08/09 1.180(30.0) 1.250(31.8) 03 .639 (16.2) 1.328 (33.7) .750 (19.1) 1.438 (36.5)
10/11 1.180(30.0) 1.250(31.8) 04 .639 (16.2) 1.328 (33.7) .750 (19.1) 1.438 (36.5)
12/13 1.180(30.0) 1.250(31.8) 1.735(44.1) 05 .664 (16.9) 1.358 (34.5) .810 (20.6) 1.498 (38.0)
14/15 1.180(30.0) 1.250(31.8) 1.915(48.6) 06 .664 (16.9) 1.358 (34.5) .810 (20.6) 1.498 (38.0)
16/17 1.380(35.0) 1.560(39.6) 1.915(48.6) 07 .688 (17.5) 1.378 (35.0) .870 (22.1) 1.558 (39.6)
18/19 1.380(35.0) 1.560(39.6) 1.915(48.6) 08 .688 (17.5) 1.378 (35.0) .870 (22.1) 1.558 (39.6)
20/21 1.380(35.0) 1.560(39.6) 1.915(48.6) 09 .705 (17.9) 1.408 (35.8) .920 (23.4) 1.628 (41.4)
22/23 1.380(35.0) 1.560(39.6) 1.915(48.6) 10 .732 (18.6) 1.428 (36.3) .980 (24.9) 1.688 (42.9)
24/25 1.380(35.0) 1.560(39.6) 1.915(48.6) 11 .732 (18.6) 1.428 (36.3) .980 (24.9) 1.688 (42.9)
28/29 1.610 (40.9) 1.560(39.6) 1.915(48.6) 12 .748 (19.0) 1.438 (36.5) 1.020 (25.9) 1.708 (43.4)
32/33 1.610(40.9) 1.750(44.5) 1.915(48.6) 13 .773 (19.6) 1.458 (37.0) 1.080 (27.4) 1.768 (44.9)
36 1.610(40.9) 1.750(44.5) 1.915(48.6) 14 .773 (19.6) 1.458 (37.0) 1.080 (27.4) 1.768 (44.9)
40 1.610(40.9) 2.190(55.6) 1.915(48.6) 15 .800 (20.3) 1.498 (38.0) 1.140 (29.0) 1.848 (46.9)
16 .800 (20.3) 1.498 (38.0) 1.140 (29.0) 1.848 (46.9)
TABLE V: CABLE ENTRY
Dash K L M
No. Dia Dia Dia
02 .125 (3.2) .250 (6.4) .312 (7.9)
03 .188 (4.8) .312 (7.9) .375 (9.5)
04 .250 (6.4) .375 (9.5) .438 (11.1)
05 .312 (7.9) .438 (11.1) .500 (12.7)
06 .375 (9.5) .500 (12.7) .562 (14.3) 1. When maximum cable entry (page 22) is exceeded,
07 .438 (11.1) .562 (14.3) .625 (15.9) Style 2 will be supplied. (Function S only).
08 .500 (12.7) .625 (15.9) .688 (17.5) 2. Metric dimensions (mm) are indicated in parentheses.
09 .562 (14.3) .688 (17.5) .750 (19.1) 3. Consult factory for shorter lengths on straight
10 .625 (15.9) .750 (19.1) .812 (20.6) backshells.
11 .688 (17.5) .812 (20.6) .875 (22.2) 4. When using Connector Designator B refer to pages 18
12 .750 (19.1) .875 (22.2) .938 (23.8) and 19 for part number development.
13 .812 (20.6) .938 (23.8) 1.000 (25.4) 5. Backshells supplied with 600-052-* band, see Glenair
14 .875 (22.2) 1.000 (25.4) 1.062 (27.0) Series 600 Tool Catalog for installation.
15 .938 (23.8) 1.062 (27.0) 1.125 (28.6)
16 1.000 (25.4) 1.125 (28.6) 1.188 (30.2)
17 1.062 (27.0) 1.188 (30.2) 1.250 (31.8)
18 1.125 (28.6) 1.250 (31.8) 1.312 (33.3)
20 1.250 (31.8) 1.375 (34.9) 1.438 (36.5)
22 1.375 (34.9) 1.500 (38.1) 1.562 (39.7)
24 1.500 (38.1) 1.625 (41.3) 1.688 (42.9)
