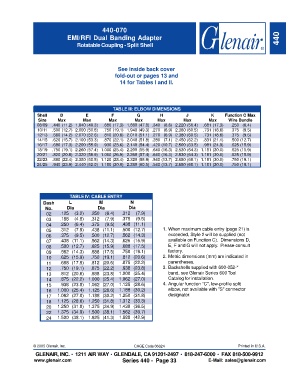

Page 419 - Circular Connector Backshells and Accessories

440-070
EMI/RFI Dual Banding Adapter 440
Rotatable Coupling - Split Shell

See inside back cover
fold-out or pages 13 and
14 for Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell D E F G H J K Function C Max
Size Max Max Max Max Max Max Max Wire Bundle
08/09 .440 (11.2) 1.940 (49.3) .680 (17.3) 1.880 (47.8) .340 (8.6) 2.220 (56.4) .681 (17.3) .250 (6.4)
10/11 .500 (12.7) 2.000 (50.8) .750 (19.1) 1.940 (49.3) .270 (6.9) 2.380 (60.5) .731 (18.6) .375 (9.5)
12/13 .560 (14.2) 2.070 (52.6) .810 (20.6) 2.010 (51.1) .270 (6.9) 2.380 (60.5) .731 (18.6) .375 (9.5)
14/15 .620 (15.7) 2.100 (53.3) .870 (22.1) 2.040 (51.8) .280 (7.1) 2.450 (62.2) .831 (21.1) .500 (12.7)
16/17 .680 (17.3) 2.200 (55.9) .930 (23.6) 2.140 (54.4) .420 (10.7) 2.500 (63.5) .981 (24.9) .625 (15.9)
18/19 .750 (19.1) 2.260 (57.4) 1.000 (25.4) 2.200 (55.9) .640 (16.3) 2.530 (64.3) 1.181 (30.0) .625 (15.9)
20/21 .820 (20.8) 2.320 (58.9) 1.060 (26.9) 2.260 (57.4) .640 (16.3) 2.530 (64.3) 1.181 (30.0) .625 (15.9)
22/23 .880 (22.4) 2.380 (60.5) 1.120 (28.4) 2.320 (58.9) .540 (13.7) 2.680 (68.1) 1.181 (30.0) .750 (19.1)
24/25 .940 (23.9) 2.440 (62.0) 1.180 (30.0) 2.380 (60.5) .540 (13.7) 2.680 (68.1) 1.181 (30.0) .750 (19.1)

TABLE IV: CABLE ENTRY
Dash L M N
No. Dia Dia Dia
02 .125 (3.2) .250 (6.4) .312 (7.9)
03 .188 (4.8) .312 (7.9) .375 (9.5)
04 .250 (6.4) .375 (9.5) .438 (11.1)
05 .312 (7.9) .438 (11.1) .500 (12.7) 1. When maximum cable entry (page 21) is
06 .375 (9.5) .500 (12.7) .562 (14.3) exceeded, Style 2 will be supplied (not
07 .438 (11.1) .562 (14.3) .625 (15.9) available on Function C). Dimensions D,
08 .500 (12.7) .625 (15.9) .688 (17.5) E, F and G will not apply. Please consult
09 .562 (14.3) .688 (17.5) .750 (19.1) factory.
10 .625 (15.9) .750 (19.1) .812 (20.6) 2. Metric dimensions (mm) are indicated in
11 .688 (17.5) .812 (20.6) .875 (22.2) parentheses.
12 .750 (19.1) .875 (22.2) .938 (23.8) 3. Backshells supplied with 600-052-*
13 .812 (20.6) .938 (23.8) 1.000 (25.4) band, see Glenair Series 600 Tool
14 .875 (22.2) 1.000 (25.4) 1.062 (27.0) Catalog for installation.
15 .938 (23.8) 1.062 (27.0) 1.125 (28.6) 4. Angular function "C", low-profile split
16 1.000 (25.4) 1.125 (28.6) 1.188 (30.2) elbow, not available with "S" connector
17 1.062 (27.0) 1.188 (30.2) 1.250 (31.8) designator.
18 1.125 (28.6) 1.250 (31.8) 1.312 (33.3)
20 1.250 (31.8) 1.375 (34.9) 1.438 (36.5)
22 1.375 (34.9) 1.500 (38.1) 1.562 (39.7)
24 1.500 (38.1) 1.625 (41.3) 1.688 (42.9)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 440 - Page 33 E-Mail: sales@glenair.com
