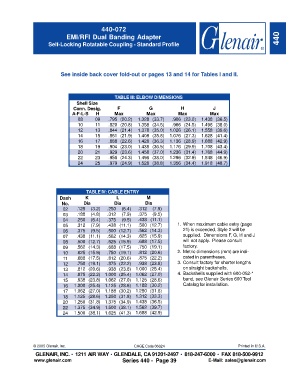

Page 425 - Circular Connector Backshells and Accessories
P. 425

440-072
                             EMI/RFI Dual Banding Adapter                                                             440
                     Self-Locking Rotatable Coupling - Standard Profile





                          See inside back cover fold-out or pages 13 and 14 for Tables I and II.





                                                 TABLE III: ELBOW DIMENSIONS
                                 Shell Size
                                Conn. Desig.      F            G             H            J
                               A-F-L-S   H       Max          Max          Max           Max
                                  08     09   .795 (20.2)  1.328 (33.7)  .906 (23.0)  1.438 (36.5)
                                  10     11   .820 (20.8)  1.358 (34.5)  .966 (24.5)  1.498 (38.0)
                                  12     13   .844 (21.4)  1.378 (35.0)  1.026 (26.1)  1.558 (39.6)
                                  14     15   .861 (21.9)  1.408 (35.8)  1.076 (27.3)  1.628 (41.4)
                                  16     17   .888 (22.6)  1.428 (36.3)  1.136 (28.9)  1.688 (42.9)
                                  18     19   .904 (23.0)  1.438 (36.5)  1.176 (29.9)  1.708 (43.4)
                                  20     21   .929 (23.6)  1.458 (37.0)  1.236 (31.4)  1.768 (44.9)
                                  22     23   .956 (24.3)  1.498 (38.0)  1.296 (32.9)  1.848 (46.9)
                                  24     25   .979 (24.9)  1.528 (38.8)  1.356 (34.4)  1.918 (48.7)





                                     TABLE IV: CABLE ENTRY
                          Dash       K            L           M
                           No.      Dia          Dia          Dia
                           02    .125  (3.2)  .250  (6.4)  .312  (7.9)
                           03    .188  (4.8)  .312  (7.9)  .375  (9.5)
                           04    .250  (6.4)  .375  (9.5)  .438 (11.1)
                           05    .312  (7.9)  .438 (11.1)  .500 (12.7)     1. When maximum cable entry (page
                           06    .375  (9.5)  .500 (12.7)  .562 (14.3)        21) is exceeded, Style 2 will be
                           07    .438 (11.1)  .562 (14.3)  .625 (15.9)        supplied.  Dimensions F, G, H and J
                           08    .500 (12.7)  .625 (15.9)  .688 (17.5)        will not apply.  Please consult
                           09    .562 (14.3)  .688 (17.5)  .750 (19.1)        factory.
                           10    .625 (15.9)  .750 (19.1)  .812 (20.6)     2. Metric dimensions (mm) are indi-
                           11    .688 (17.5)  .812 (20.6)  .875 (22.2)        cated in parentheses.
                           12    .750 (19.1)  .875 (22.2)  .938 (23.8)     3. Consult factory for shorter lengths
                           13    .812 (20.6)  .938 (23.8) 1.000 (25.4)        on straight backshells.
                           14    .875 (22.2)  1.000 (25.4) 1.062 (27.0)    4. Backshells supplied with 600-052-*
                           15    .938 (23.8)  1.062 (27.0) 1.125 (28.6)       band, see Glenair Series 600 Tool
                           16   1.000 (25.4)  1.125 (28.6) 1.188 (30.2)       Catalog for installation.
                           17   1.062 (27.0)  1.188 (30.2) 1.250 (31.8)
                           18   1.125 (28.6)  1.250 (31.8) 1.312 (33.3)
                           20   1.250 (31.8)  1.375 (34.9) 1.438 (36.5)
                           22   1.375 (34.9)  1.500 (38.1) 1.562 (39.7)
                           24   1.500 (38.1)  1.625 (41.3) 1.688 (42.9)
