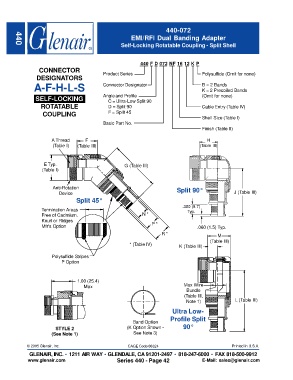

Page 428 - Circular Connector Backshells and Accessories

440-072
EMI/RFI Dual Banding Adapter
Self-Locking Rotatable Coupling - Split Shell
440

440 F D 072 NF 16 12 K P
CONNECTOR
DESIGNATORS Product Series Polysulfide (Omit for none)
A-F-H-L-S Connector Designator B = 2 Bands
K = 2 Precoiled Bands
SELF-LOCKING Angle and Profile (Omit for none)
C = Ultra-Low Split 90°
ROTATABLE D = Split 90° Cable Entry (Table IV)
COUPLING F = Split 45°
Shell Size (Table I)
Basic Part No.
Finish (Table II)

A Thread F H
(Table I) (Table III) (Table III)

E Typ. G (Table III)
(Table I)

Anti-Rotation Split 90°
Device J (Table III)
Split 45°
.380 (9.7)
Termination Areas Typ.
Free of Cadmium. N *
Knurl or Ridges
Mfr's Option P * .060 (1.5) Typ.
R * M
(Table III)
* (Table IV) K (Table III)

Polysulfide Stripes
P Option

1.00 (25.4)
Max Max Wire
Bundle
(Table III,
Note 1) L (Table III)
Ultra Low-
Profile Split
Band Option
STYLE 2 (K Option Shown - 90°
(See Note 1) See Note 3)
