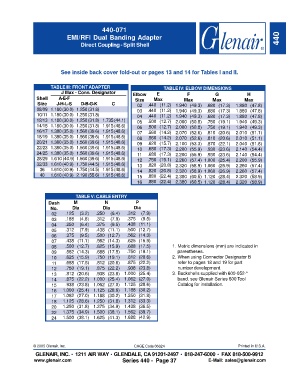

440-071
                             EMI/RFI Dual Banding Adapter                                                             440
                                   Direct Coupling - Split Shell





                          See inside back cover fold-out or pages 13 and 14 for Tables I and II.


                      TABLE III: FRONT ADAPTER                       TABLE IV: ELBOW DIMENSIONS
                           J Max - Conn. Designator      Elbow    E            F           G            H
                Shell     A-E-F                          Size    Max          Max         Max          Max
                 Size    J-H-L-S   D-B-G-K      C         02   .440 (11.2) 1.940 (49.3)  .680 (17.3)  1.880 (47.8)
                08/09 1.180(30.0) 1.250(31.8)             03   .440 (11.2) 1.940 (49.3)  .680 (17.3)  1.880 (47.8)
                10/11 1.180(30.0) 1.250(31.8)             04   .440 (11.2) 1.940 (49.3)  .680 (17.3)  1.880 (47.8)
                12/13 1.180(30.0) 1.250(31.8) 1.735(44.1)  05  .500 (12.7) 2.000 (50.8)  .750 (19.1)  1.940 (49.3)
                14/15 1.180(30.0) 1.250(31.8) 1.915(48.6)  06  .500 (12.7) 2.000 (50.8)  .750 (19.1)  1.940 (49.3)
                16/17 1.380(35.0) 1.560(39.6) 1.915(48.6)  07  .560 (14.2) 2.070 (52.6)  .810 (20.6)  2.010 (51.1)
                18/19 1.380(35.0) 1.560(39.6) 1.915(48.6)  08  .560 (14.2) 2.070 (52.6)  .810 (20.6)  2.010 (51.1)
                20/21 1.380(35.0) 1.560(39.6) 1.915(48.6)  09  .620 (15.7) 2.100 (53.3)  .870 (22.1)  2.040 (51.8)
                22/23 1.380(35.0) 1.560(39.6) 1.915(48.6)  10  .680 (17.3) 2.200 (55.9)  .930 (23.6)  2.140 (54.4)
                24/25 1.380(35.0) 1.560(39.6) 1.915(48.6)  11  .680 (17.3) 2.200 (55.9)  .930 (23.6)  2.140 (54.4)
                28/29 1.610 (40.9) 1.560(39.6) 1.915(48.6)  12  .750 (19.1) 2.260 (57.4)  1.000 (25.4)  2.200 (55.9)
                32/33 1.610(40.9) 1.750(44.5) 1.915(48.6)  13  .820 (20.8) 2.320 (58.9)  1.060 (26.9)  2.260 (57.4)
                  36  1.610(40.9) 1.750(44.5) 1.915(48.6)  14  .820 (20.8) 2.320 (58.9)  1.060 (26.9)  2.260 (57.4)
                  40  1.610(40.9) 2.190(55.6) 1.915(48.6)  15  .880 (22.4) 2.380 (60.5)  1.120 (28.4)  2.320 (58.9)
                                                          16   .880 (22.4) 2.380 (60.5)  1.120 (28.4)  2.320 (58.9)

                                 TABLE V: CABLE ENTRY
                     Dash       M            N            P
                      No.      Dia          Dia          Dia
                       02   .125  (3.2)  .250  (6.4)  .312  (7.9)
                       03   .188  (4.8)  .312  (7.9)  .375  (9.5)
                       04   .250  (6.4)  .375  (9.5)  .438 (11.1)
                       05   .312  (7.9)  .438 (11.1)  .500 (12.7)
                       06   .375  (9.5)  .500 (12.7)  .562 (14.3)
                       07   .438 (11.1)  .562 (14.3)  .625 (15.9)
                       08   .500 (12.7)  .625 (15.9)  .688 (17.5)        1. Metric dimensions (mm) are indicated in
                       09   .562 (14.3)  .688 (17.5)  .750 (19.1)          parentheses.
                       10   .625 (15.9)  .750 (19.1)  .812 (20.6)        2. When using Connector Designator B
                       11   .688 (17.5)  .812 (20.6)  .875 (22.2)          refer to pages 18 and 19 for part
                       12   .750 (19.1)  .875 (22.2)  .938 (23.8)          number development.
                       13   .812 (20.6)  .938 (23.8) 1.000 (25.4)        3. Backshells supplied with 600-052-*
                       14   .875 (22.2)  1.000 (25.4) 1.062 (27.0)         band, see Glenair Series 600 Tool
                       15   .938 (23.8)  1.062 (27.0) 1.125 (28.6)         Catalog for installation.
                       16  1.000 (25.4)  1.125 (28.6) 1.188 (30.2)
                       17  1.062 (27.0)  1.188 (30.2) 1.250 (31.8)
                       18  1.125 (28.6)  1.250 (31.8) 1.312 (33.3)
                       20  1.250 (31.8)  1.375 (34.9) 1.438 (36.5)
                       22  1.375 (34.9)  1.500 (38.1) 1.562 (39.7)
                       24  1.500 (38.1)  1.625 (41.3) 1.688 (42.9)
