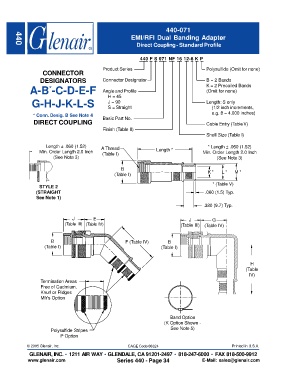

440-071
EMI/RFI Dual Banding Adapter
Direct Coupling - Standard Profile
440

440 F S 071 NF 16 12-8 K P

Product Series Polysulfide (Omit for none)
CONNECTOR
DESIGNATORS Connector Designator B = 2 Bands
A-B -C-D-E-F Angle and Profile K = 2 Precoiled Bands
*
(Omit for none)
H = 45°
G-H-J-K-L-S J = 90° Length: S only
S = Straight
(1/2 inch increments,
* Conn. Desig. B See Note 4 e.g. 8 = 4.000 inches)
DIRECT COUPLING Basic Part No. Cable Entry (Table V)
Finish (Table II)
Shell Size (Table I)
Length ± .060 (1.52) A Thread * Length ± .060 (1.52)
Min. Order Length 2.0 Inch (Table I) Length * Min. Order Length 2.0 Inch
(See Note 3) (See Note 3)

B
(Table I) K * L * M *
* (Table V)
STYLE 2
(STRAIGHT .060 (1.5) Typ.
See Note 1)
.380 (9.7) Typ.

J E J G
(Table III) (Table IV) (Table III) (Table IV)

B F (Table IV) B
(Table I) (Table I)

H
(Table
IV)
Termination Areas
Free of Cadmium.
Knurl or Ridges
Mfr's Option

Band Option
(K Option Shown -
Polysulfide Stripes See Note 5)
P Option
