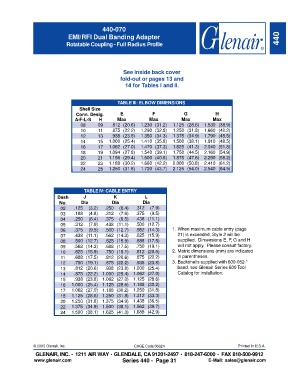

Page 417 - Circular Connector Backshells and Accessories
P. 417

440-070
                              EMI/RFI Dual Banding Adapter                                                            440
                             Rotatable Coupling - Full Radius Profile





                                                     See inside back cover
                                                   fold-out or pages 13 and
                                                     14 for Tables I and II.



                                                  TABLE III: ELBOW DIMENSIONS
                                  Shell Size
                                 Conn. Desig.      E             F            G            H
                                A-F-L-S   H       Max          Max           Max          Max
                                   08     09    .812 (20.6)  1.230 (31.2)  1.125 (28.6)  1.530 (38.9)
                                   10     11    .875 (22.2)  1.290 (32.8)  1.250 (31.8)  1.660 (42.2)
                                   12     13    .938 (23.8)  1.350 (34.3)  1.375 (34.9)  1.790 (45.5)
                                   14     15   1.000 (25.4)  1.410 (35.8)  1.500 (38.1)  1.910 (48.5)
                                   16     17   1.062 (27.0)  1.470 (37.3)  1.625 (41.3)  2.040 (51.8)
                                   18     19   1.094 (27.8)  1.540 (39.1)  1.750 (44.5)  2.160 (54.9)
                                   20     21   1.156 (29.4)  1.600 (40.6)  1.875 (47.6)  2.290 (58.2)
                                   22     23   1.188 (30.2)  1.660 (42.2)  2.000 (50.8)  2.410 (61.2)
                                   24     25   1.250 (31.8)  1.720 (43.7)  2.125 (54.0)  2.540 (64.5)




                                    TABLE IV: CABLE ENTRY
                         Dash       J            K            L
                          No.      Dia          Dia          Dia
                          02    .125  (3.2)  .250  (6.4)  .312  (7.9)
                          03    .188  (4.8)  .312  (7.9)  .375  (9.5)
                          04    .250  (6.4)  .375  (9.5)  .438 (11.1)
                          05    .312  (7.9)  .438 (11.1)  .500 (12.7)
                          06    .375  (9.5)  .500 (12.7)  .562 (14.3)    1. When maximum cable entry (page
                          07    .438 (11.1)  .562 (14.3)  .625 (15.9)      21) is exceeded, Style 2 will be
                          08    .500 (12.7)  .625 (15.9)  .688 (17.5)      supplied.  Dimensions E, F, G and H
                          09    .562 (14.3)  .688 (17.5)  .750 (19.1)      will not apply.  Please consult factory.
                          10    .625 (15.9)  .750 (19.1)  .812 (20.6)    2. Metric dimensions (mm) are indicated
                          11    .688 (17.5)  .812 (20.6)  .875 (22.2)      in parentheses.
                          12    .750 (19.1)  .875 (22.2)  .938 (23.8)    3. Backshells supplied with 600-052-*
                          13    .812 (20.6)  .938 (23.8) 1.000 (25.4)      band, see Glenair Series 600 Tool
                          14    .875 (22.2)  1.000 (25.4) 1.062 (27.0)     Catalog for installation.
                          15    .938 (23.8)  1.062 (27.0) 1.125 (28.6)
                          16   1.000 (25.4)  1.125 (28.6) 1.188 (30.2)
                          17   1.062 (27.0)  1.188 (30.2) 1.250 (31.8)
                          18   1.125 (28.6)  1.250 (31.8) 1.312 (33.3)
                          20   1.250 (31.8)  1.375 (34.9) 1.438 (36.5)
                          22   1.375 (34.9)  1.500 (38.1) 1.562 (39.7)
                          24   1.500 (38.1)  1.625 (41.3) 1.688 (42.9)
