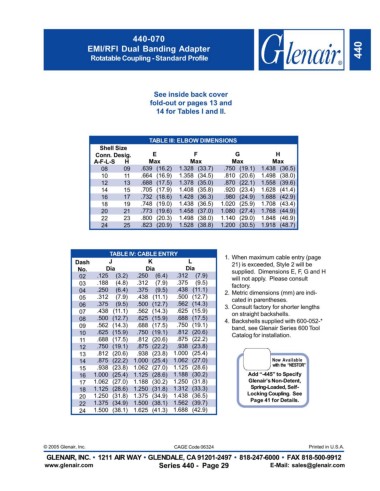

440-070
EMI/RFI Dual Banding Adapter 440
Rotatable Coupling - Standard Profile

See inside back cover
fold-out or pages 13 and
14 for Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. E F G H
A-F-L-S H Max Max Max Max
08 09 .639 (16.2) 1.328 (33.7) .750 (19.1) 1.438 (36.5)
10 11 .664 (16.9) 1.358 (34.5) .810 (20.6) 1.498 (38.0)
12 13 .688 (17.5) 1.378 (35.0) .870 (22.1) 1.558 (39.6)
14 15 .705 (17.9) 1.408 (35.8) .920 (23.4) 1.628 (41.4)
16 17 .732 (18.6) 1.428 (36.3) .980 (24.9) 1.688 (42.9)
18 19 .748 (19.0) 1.438 (36.5) 1.020 (25.9) 1.708 (43.4)
20 21 .773 (19.6) 1.458 (37.0) 1.080 (27.4) 1.768 (44.9)
22 23 .800 (20.3) 1.498 (38.0) 1.140 (29.0) 1.848 (46.9)
24 25 .823 (20.9) 1.528 (38.8) 1.200 (30.5) 1.918 (48.7)

TABLE IV: CABLE ENTRY
Dash J K L 1. When maximum cable entry (page
21) is exceeded, Style 2 will be
No. Dia Dia Dia supplied. Dimensions E, F, G and H
02 .125 (3.2) .250 (6.4) .312 (7.9) will not apply. Please consult
03 .188 (4.8) .312 (7.9) .375 (9.5) factory.
04 .250 (6.4) .375 (9.5) .438 (11.1) 2. Metric dimensions (mm) are indi-
05 .312 (7.9) .438 (11.1) .500 (12.7) cated in parentheses.
06 .375 (9.5) .500 (12.7) .562 (14.3) 3. Consult factory for shorter lengths
07 .438 (11.1) .562 (14.3) .625 (15.9) on straight backshells.
08 .500 (12.7) .625 (15.9) .688 (17.5) 4. Backshells supplied with 600-052-*
09 .562 (14.3) .688 (17.5) .750 (19.1) band, see Glenair Series 600 Tool
10 .625 (15.9) .750 (19.1) .812 (20.6) Catalog for installation.
11 .688 (17.5) .812 (20.6) .875 (22.2)
12 .750 (19.1) .875 (22.2) .938 (23.8)
13 .812 (20.6) .938 (23.8) 1.000 (25.4)
14 .875 (22.2) 1.000 (25.4) 1.062 (27.0) Now Available
15 .938 (23.8) 1.062 (27.0) 1.125 (28.6) with the “NESTOR”
16 1.000 (25.4) 1.125 (28.6) 1.188 (30.2) Add “-445” to Specify
17 1.062 (27.0) 1.188 (30.2) 1.250 (31.8) Glenair’s Non-Detent,
18 1.125 (28.6) 1.250 (31.8) 1.312 (33.3) Spring-Loaded, Self-
20 1.250 (31.8) 1.375 (34.9) 1.438 (36.5) Locking Coupling. See
22 1.375 (34.9) 1.500 (38.1) 1.562 (39.7) Page 41 for Details.
24 1.500 (38.1) 1.625 (41.3) 1.688 (42.9)
