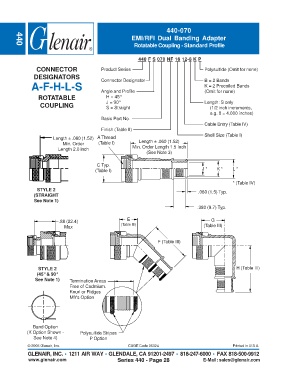

440-070
EMI/RFI Dual Banding Adapter
Rotatable Coupling - Standard Profile
440

440 F S 070 NF 16 12-8 K P
CONNECTOR Product Series Polysulfide (Omit for none)
DESIGNATORS Connector Designator B = 2 Bands
A-F-H-L-S Angle and Profile K = 2 Precoiled Bands
(Omit for none)
ROTATABLE H = 45°
COUPLING J = 90° Length: S only
S = Straight
(1/2 inch increments,
e.g. 8 = 4.000 inches)
Basic Part No.
Cable Entry (Table IV)
Finish (Table II)
Shell Size (Table I)
Length ± .060 (1.52) A Thread
Min. Order (Table I) Length ± .060 (1.52)
Length 2.0 inch Min. Order Length 1.5 Inch
(See Note 3)

C Typ.
(Table I) J * K * L *

* (Table IV)
STYLE 2 .060 (1.5) Typ.
(STRAIGHT
See Note 1)
.380 (9.7) Typ.

.88 (22.4) E G
Max (Table III) (Table III)

F (Table III)

STYLE 2 H (Table III)
(45° & 90°
See Note 1) Termination Areas
Free of Cadmium.
Knurl or Ridges
Mfr's Option

Band Option
(K Option Shown - Polysulfide Stripes
See Note 4) P Option
