Page 412 - Circular Connector Backshells and Accessories

440-069

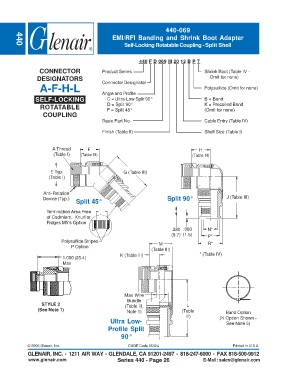

EMI/RFI Banding and Shrink Boot Adapter
Self-Locking Rotatable Coupling - Split Shell
440

440 F D 069 M 20 12 B P T

CONNECTOR Product Series Shrink Boot (Table IV -
DESIGNATORS Connector Designator Omit for none)
A-F-H-L Polysulfide (Omit for none)
Angle and Profile
SELF-LOCKING C = Ultra-Low Split 90° B = Band
ROTATABLE D = Split 90° K = Precoiled Band
F = Split 45°
(Omit for none)
COUPLING
Basic Part No. Cable Entry (Table IV)

Finish (Table II) Shell Size (Table I)

A Thread F H
(Table I) (Table III) (Table III)

E Typ. G (Table III)
(Table I)

Anti-Rotation
Device (Typ.) Split 90° J (Table III)
Split 45°
Termination Area Free
of Cadmium. Knurl or
Ridges Mfr's Option
.380 .060 N*
(9.7) (1.5) P*
Polysulfide Stripes M R*
P Option
(Table III)
K (Table III) * (Table IV)
1.000 (25.4)
Max

Max Wire
Bundle
STYLE 2 (Table III, L
(See Note 1) Note 1) (Table Band Option
III) (K Option Shown -
Ultra Low- See Note 5)
Profile Split
90°
