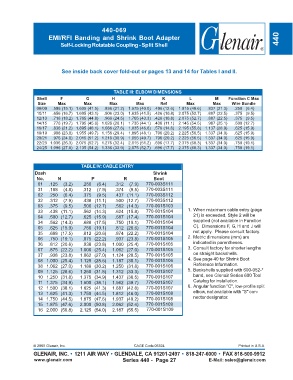

Page 413 - Circular Connector Backshells and Accessories

440-069
EMI/RFI Banding and Shrink Boot Adapter 440
Self-Locking Rotatable Coupling - Split Shell

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell F G H J K L M Function C Max
Size Max Max Max Max Ref Max Max Wire Bundle
08/09 .596 (15.1) 1.635 (41.5) .836 (21.2) 1.575 (40.0) .496 (12.6) 1.915 (48.6) .837 (21.3) .250 (6.4)
10/11 .656 (16.7) 1.695 (43.1) .906 (23.0) 1.635 (41.5) .426 (10.8) 2.075 (52.7) .887 (22.5) .375 (9.5)
12/13 .716 (18.2) 1.765 (44.8) .966 (24.5) 1.705 (43.3) .426 (10.8) 2.075 (52.7) .887 (22.5) .375 (9.5)
14/15 .776 (19.7) 1.795 (45.6) 1.026 (26.1) 1.735 (44.1) .436 (11.1) 2.145 (54.5) .987 (25.1) .500 (12.7)
16/17 .836 (21.2) 1.895 (48.1) 1.086 (27.6) 1.835 (46.6) .576 (14.6) 2.195 (55.8) 1.137 (28.9) .625 (15.9)
18/19 .906 (23.0) 1.955 (49.7) 1.156 (29.4) 1.895 (48.1) .796 (20.2) 2.225 (56.5) 1.337 (34.0) .625 (15.9)
20/21 .976 (24.8) 2.015 (51.2) 1.216 (30.9) 1.955 (49.7) .796 (20.2) 2.225 (56.5) 1.337 (34.0) .625 (15.9)
22/23 1.036 (26.3) 2.075 (52.7) 1.276 (32.4) 2.015 (51.2) .696 (17.7) 2.375 (60.3) 1.337 (34.0) .750 (19.1)
24/25 1.096 (27.8) 2.135 (54.2) 1.336 (33.9) 2.075 (52.7) .696 (17.7) 2.375 (60.3) 1.337 (34.0) .750 (19.1)

TABLE IV: CABLE ENTRY
Dash Shrink
No. N P R Boot
01 .125 (3.2) .250 (6.4) .312 (7.9) 770-003S111
31 .188 (4.8) .312 (7.9) .374 (9.5) 770-003S111
02 .250 (6.4) .375 (9.5) .437 (11.1) 770-003S112
32 .312 (7.9) .438 (11.1) .500 (12.7) 770-003S112
03 .375 (9.5) .500 (12.7) .562 (14.3) 770-001S103
33 .438 (11.1) .562 (14.3) .624 (15.8) 770-001S104 1. When maximum cable entry (page
04 .500 (12.7) .625 (15.9) .687 (17.4) 770-001S104 21) is exceeded, Style 2 will be
34 .562 (14.3) .688 (17.5) .750 (19.1) 770-001S104 supplied (not available in Function
05 .625 (15.9) .750 (19.1) .812 (20.6) 770-001S104 C). Dimensions F, G, H and J will
35 .688 (17.5) .812 (20.6) .874 (22.2) 770-001S104 not apply. Please consult factory.
06 .750 (19.1) .875 (22.2) .937 (23.8) 770-001S105 2. Metric dimensions (mm) are
36 .812 (20.6) .938 (23.8) 1.000 (25.4) 770-001S105 indicated in parentheses.
07 .875 (22.2) 1.000 (25.4) 1.062 (27.0) 770-001S105 3. Consult factory for shorter lengths
37 .938 (23.8) 1.062 (27.0) 1.124 (28.5) 770-001S105 on straight backshells.
08 1.000 (25.4) 1.125 (28.6) 1.187 (30.1) 770-001S106 4. See page 40 for Shrink Boot
38 1.062 (27.0) 1.188 (30.2) 1.250 (31.8) 770-001S106 Reference Information.
09 1.125 (28.6) 1.250 (31.8) 1.312 (33.3) 770-001S107 5. Backshells supplied with 600-052-*
10 1.250 (31.8) 1.375 (34.9) 1.437 (36.5) 770-001S107 band, see Glenair Series 600 Tool
11 1.375 (34.9) 1.500 (38.1) 1.562 (39.7) 770-001S107 Catalog for installation.
12 1.500 (38.1) 1.625 (41.3) 1.687 (42.8) 770-001S107 6. Angular function "C", low-profile split
13 1.625 (41.3) 1.750 (44.5) 1.812 (46.0) 770-001S108 elbow, not available with "S" con-
14 1.750 (44.5) 1.875 (47.6) 1.937 (49.2) 770-001S108 nector designator.
15 1.875 (47.6) 2.000 (50.8) 2.062 (52.4) 770-001S109
16 2.000 (50.8) 2.125 (54.0) 2.187 (55.5) 770-001S109

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 440 - Page 27 E-Mail: sales@glenair.com
