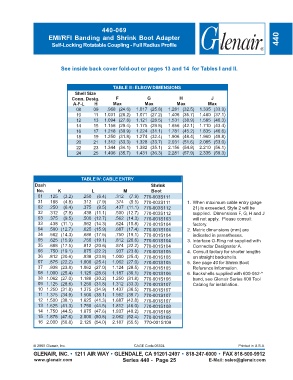

Page 411 - Circular Connector Backshells and Accessories

440-069
EMI/RFI Banding and Shrink Boot Adapter 440
Self-Locking Rotatable Coupling - Full Radius Profile

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. F G H J
A-F-L H Max Max Max Max
08 09 .968 (24.6) 1.017 (25.8) 1.281 (32.5) 1.335 (33.9)
10 11 1.031 (26.2) 1.071 (27.2) 1.406 (35.7) 1.460 (37.1)
12 13 1.094 (27.8) 1.121 (28.5) 1.531 (38.9) 1.585 (40.3)
14 15 1.156 (29.4) 1.175 (29.8) 1.656 (42.1) 1.710 (43.4)
16 17 1.218 (30.9) 1.224 (31.1) 1.781 (45.2) 1.835 (46.6)
18 19 1.250 (31.8) 1.274 (32.4) 1.906 (48.4) 1.960 (49.8)
20 21 1.312 (33.3) 1.328 (33.7) 2.031 (51.6) 2.085 (53.0)
22 23 1.344 (34.1) 1.382 (35.1) 2.156 (54.8) 2.210 (56.1)
24 25 1.406 (35.7) 1.431 (36.3) 2.281 (57.9) 2.335 (59.3)

TABLE IV: CABLE ENTRY
Dash Shrink
No. K L M Boot
01 .125 (3.2) .250 (6.4) .312 (7.9) 770-003S111
31 .188 (4.8) .312 (7.9) .374 (9.5) 770-003S111 1. When maximum cable entry (page
02 .250 (6.4) .375 (9.5) .437 (11.1) 770-003S112 21) is exceeded, Style 2 will be
32 .312 (7.9) .438 (11.1) .500 (12.7) 770-003S112 supplied. Dimensions F, G, H and J
03 .375 (9.5) .500 (12.7) .562 (14.3) 770-001S103 will not apply. Please consult
33 .438 (11.1) .562 (14.3) .624 (15.8) 770-001S104 factory.
04 .500 (12.7) .625 (15.9) .687 (17.4) 770-001S104 2. Metric dimensions (mm) are
34 .562 (14.3) .688 (17.5) .750 (19.1) 770-001S104 indicated in parentheses.
05 .625 (15.9) .750 (19.1) .812 (20.6) 770-001S104 3. Interface O-Ring not supplied with
35 .688 (17.5) .812 (20.6) .874 (22.2) 770-001S104 Connector Designator A.
06 .750 (19.1) .875 (22.2) .937 (23.8) 770-001S105 4. Consult factory for shorter lengths
36 .812 (20.6) .938 (23.8) 1.000 (25.4) 770-001S105 on straight backshells.
07 .875 (22.2) 1.000 (25.4) 1.062 (27.0) 770-001S105 5. See page 40 for Shrink Boot
37 .938 (23.8) 1.062 (27.0) 1.124 (28.5) 770-001S105 Reference Information.
08 1.000 (25.4) 1.125 (28.6) 1.187 (30.1) 770-001S106 6. Backshells supplied with 600-052-*
38 1.062 (27.0) 1.188 (30.2) 1.250 (31.8) 770-001S106 band, see Glenair Series 600 Tool
09 1.125 (28.6) 1.250 (31.8) 1.312 (33.3) 770-001S107 Catalog for installation.
10 1.250 (31.8) 1.375 (34.9) 1.437 (36.5) 770-001S107
11 1.375 (34.9) 1.500 (38.1) 1.562 (39.7) 770-001S107
12 1.500 (38.1) 1.625 (41.3) 1.687 (42.8) 770-001S107
13 1.625 (41.3) 1.750 (44.5) 1.812 (46.0) 770-001S108
14 1.750 (44.5) 1.875 (47.6) 1.937 (49.2) 770-001S108
15 1.875 (47.6) 2.000 (50.8) 2.062 (52.4) 770-001S109
16 2.000 (50.8) 2.125 (54.0) 2.187 (55.5) 770-001S109
