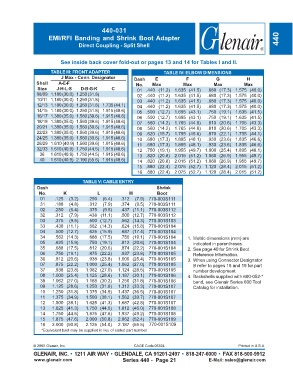

Page 407 - Circular Connector Backshells and Accessories

440-031
EMI/RFI Banding and Shrink Boot Adapter 440
Direct Coupling - Split Shell

See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: FRONT ADAPTER TABLE IV: ELBOW DIMENSIONS
J Max - Conn. Designator Dash E F G H
Shell A-E-F No. Max Max Max Max
Size J-H-L-S D-B-G-K C 01 .440 (11.2) 1.635 (41.5) .680 (17.3) 1.575 (40.0)
08/09 1.180 (30.0) 1.250 (31.8) 02 .440 (11.2) 1.635 (41.5) .680 (17.3) 1.575 (40.0)
10/11 1.180 (30.0) 1.250 (31.8) 03 .440 (11.2) 1.635 (41.5) .680 (17.3) 1.575 (40.0)
12/13 1.180 (30.0) 1.250 (31.8) 1.735 (44.1) 04 .440 (11.2) 1.635 (41.5) .680 (17.3) 1.575 (40.0)
14/15 1.180 (30.0) 1.250 (31.8) 1.915 (48.6) 05 .500 (12.7) 1.695 (43.1) .750 (19.1) 1.635 (41.5)
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 06 .500 (12.7) 1.695 (43.1) .750 (19.1) 1.635 (41.5)
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 07 .560 (14.2) 1.765 (44.8) .810 (20.6) 1.705 (43.3)
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 08 .560 (14.2) 1.765 (44.8) .810 (20.6) 1.705 (43.3)
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 09 .620 (15.7) 1.795 (45.6) .870 (22.1) 1.735 (44.1)
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 10 .680 (17.3) 1.895 (48.1) .930 (23.6) 1.835 (46.6)
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 11 .680 (17.3) 1.895 (48.1) .930 (23.6) 1.835 (46.6)
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 12 .750 (19.1) 1.955 (49.7) 1.000 (25.4) 1.895 (48.1)
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 13 .820 (20.8) 2.015 (51.2) 1.060 (26.9) 1.955 (49.7)
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6) 14 .820 (20.8) 2.015 (51.2) 1.060 (26.9) 1.955 (49.7)
15 .880 (22.4) 2.075 (52.7) 1.120 (28.4) 2.015 (51.2)
16 .880 (22.4) 2.075 (52.7) 1.120 (28.4) 2.015 (51.2)
TABLE V: CABLE ENTRY
Dash Shrink
No. K L M Boot
01 .125 (3.2) .250 (6.4) .312 (7.9) 770-003S111
31 .188 (4.8) .312 (7.9) .374 (9.5) 770-003S111
02 .250 (6.4) .375 (9.5) .437 (11.1) 770-003S112
32 .312 (7.9) .438 (11.1) .500 (12.7) 770-003S112
03 .375 (9.5) .500 (12.7) .562 (14.3) 770-001S103
33 .438 (11.1) .562 (14.3) .624 (15.8) 770-001S104
04 .500 (12.7) .625 (15.9) .687 (17.4) 770-001S104
34 .562 (14.3) .688 (17.5) .750 (19.1) 770-001S104 1. Metric dimensions (mm) are
05 .625 (15.9) .750 (19.1) .812 (20.6) 770-001S104 indicated in parentheses.
35 .688 (17.5) .812 (20.6) .874 (22.2) 770-001S104 2. See page 40 for Shrink Boot
06 .750 (19.1) .875 (22.2) .937 (23.8) 770-001S105 Reference Information.
36 .812 (20.6) .938 (23.8) 1.000 (25.4) 770-001S105 3. When using Connector Designator
07 .875 (22.2) 1.000 (25.4) 1.062 (27.0) 770-001S105 B refer to pages 18 and 19 for part
37 .938 (23.8) 1.062 (27.0) 1.124 (28.5) 770-001S105 number development.
08 1.000 (25.4) 1.125 (28.6) 1.187 (30.1) 770-001S106 4. Backshells supplied with 600-052-*
38 1.062 (27.0) 1.188 (30.2) 1.250 (31.8) 770-001S106 band, see Glenair Series 600 Tool
09 1.125 (28.6) 1.250 (31.8) 1.312 (33.3) 770-001S107 Catalog for installation.
10 1.250 (31.8) 1.375 (34.9) 1.437 (36.5) 770-001S107
11 1.375 (34.9) 1.500 (38.1) 1.562 (39.7) 770-001S107
12 1.500 (38.1) 1.625 (41.3) 1.687 (42.8) 770-001S107
13 1.625 (41.3) 1.750 (44.5) 1.812 (46.0) 770-001S108
14 1.750 (44.5) 1.875 (47.6) 1.937 (49.2) 770-001S108
15 1.875 (47.6) 2.000 (50.8) 2.062 (52.4) 770-001S109
16 2.000 (50.8) 2.125 (54.0) 2.187 (55.5) 770-001S109
*Equivalent boot may be supplied in lieu of stated part number.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 440 - Page 21 E-Mail: sales@glenair.com
