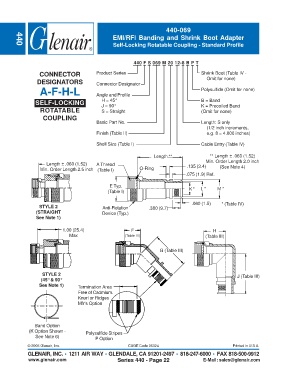

Page 408 - Circular Connector Backshells and Accessories

440-069
EMI/RFI Banding and Shrink Boot Adapter
Self-Locking Rotatable Coupling - Standard Profile
440

440 F S 069 M 20 12-8 B P T
CONNECTOR Product Series Shrink Boot (Table IV -
DESIGNATORS Connector Designator Omit for none)
A-F-H-L Angle and Profile Polysulfide (Omit for none)

SELF-LOCKING H = 45° B = Band
J = 90°
K = Precoiled Band
ROTATABLE S = Straight (Omit for none)
COUPLING
Basic Part No. Length: S only
(1/2 inch increments,
Finish (Table II) e.g. 8 = 4.000 inches)

Shell Size (Table I) Cable Entry (Table IV)

Length ** ** Length ± .060 (1.52)
Min. Order Length 2.0 inch
Length ± .060 (1.52) A Thread .135 (3.4)
Min. Order Length 2.5 inch (Table I) O-Ring (See Note 4)
.075 (1.9) Ref.

E Typ.
(Table I) K * L * M *

.060 (1.5) * (Table IV)
STYLE 2 Anti-Rotation .380 (9.7)
(STRAIGHT Device (Typ.)
See Note 1)

1.00 (25.4) F H
Max (Table III) (Table III)

G (Table III)

STYLE 2 J (Table III)
(45° & 90°
See Note 1) Termination Area
Free of Cadmium.
Knurl or Ridges
Mfr's Option

Band Option
(K Option Shown - Polysulfide Stripes
See Note 6) P Option
